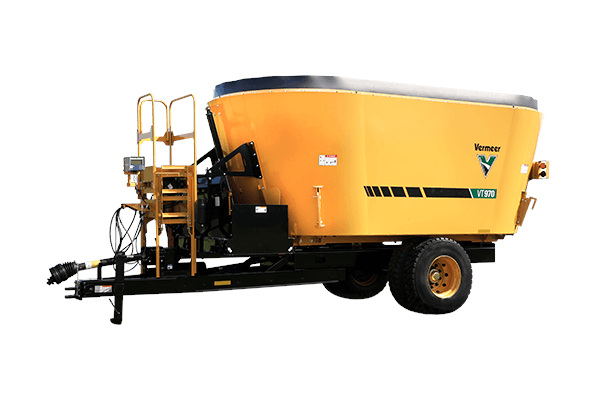

Heavy-duty parts and useful features are built into the VT970 Premium twin-screw vertical mixer for high-volume operations.
Along with all the features of the VT970 twin-screw vertical mixer, the Vermeer VT970 Premium twin-screw vertical mixer is a machine for high-volume operations. It has a thicker floor, thicker ... + Read More
Screw design
Vermeer mixers are known for creating a thorough, consistent mix. This is made possible by the overlapping screw design that works directly with the small, offset baffles on the tub wall. Instead of feedstuffs remaining in one chamber of the twin screw, the screws and baffles work to move the feed between the screws in a clockwise motion.
Efficient cleanout
Rations are mixed to be fed, not to be left in the tub. Two bi-pulse legs work with the leading edge of the screw to form three points of contact with the tub floor for efficient cleanout, over mixers with only one or two points of contact.
Optional stainless steel liner
Help withstand a variety of feedstuffs and prevent rust with the optional stainless steel liner on the VT970 Premium.
Versatile axle options
With the VT970 Premium twin-screw vertical mixer, choose a single axle with dual tires or a tandem-spring axle with four large super-single tires for optimal performance in adverse ground conditions.
Upgraded durability
Premium mixers from Vermeer are for high-volume operators that need maximum durability. The VT970 Premium offers the same features of a VT970 but with thicker tub walls, floor and screw flighting.
4-point scale with Bluetooth connectivity
The Premium vertical mixers allow operators to view weight readouts from three different places: standard display, smart device via Bluetooth technology or from the additional remote display. The additional remote display helps provide visibility when loading feedstuffs.
DIMENSIONS AND WEIGHTS | |
Loading height - standard | 127 in |
Machine weight - standard | 22880 lbs |
Maximum net load | 25000 lbs |
Total length | 300 in |
Transport width - 50-in folding conveyor extension | 119 in |
Transport width - 119-in bi-directional conveyor | 119 in |
Working width - 50-in folding conveyor extension | 136 in |
Working width - 119-in bi-directional conveyor | 119 in |
Tires (retread) | Standard 315/80R-22.5 dual; Optional 445/50R-22.5 tandem |
TUB AND SCREWS | |
Capacity | 970 cu ft |
Number of screws | 2 |
Number of knives per screw | 7 |
Tub wall thickness | 3/8 in (9.5 mm) |
Tub wall material | AR200 |
Floor thickness | 1 in (2.5 cm) |
Screw flighting thickness | 3/4 in (19.1 mm) |
Screw flighting material | AR200 |
DISCHARGE SYSTEM | |
Discharge style | Front conveyor |
Discharge Direction | Left or right |
Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
Rear discharge door | Optional |
TRACTOR REQUIREMENTS | |
Minimum PTO horsepower | 180 hp (2-speed) (130 kW) |
Recommended PTO horsepower | 200 hp |
DRIVE SYSTEM | |
Driveline | 1,000 rpm, CV |
Two-speed gearbox | Optional |
Torque Protection | Shear bolt |
Screw rpm | 39 (1-speed); 39/26 (2-speed) |
SCALE SYSTEM | |
Scale display | Digi-Star EZ2810-BT |
Number of weigh bars | 4 |
Bluetooth connectivity | Standard |
Remote Display | Standard |
