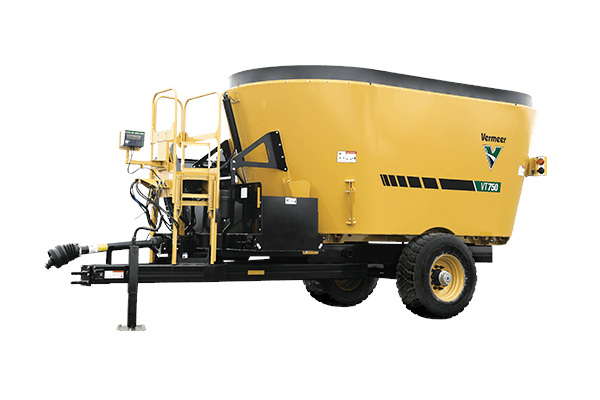

The VT750 twin-screw vertical mixer features useful design options to help take your operation to the next level.
Built on the same base platform as the VT600, the Vermeer VT750 twin-screw vertical mixer works well for a variety of operations. With a standard full set of knives on the overlapping screws, it helps pr... + Read More
Screw design
Every piece of the screw and tub design on the twin-screw mixers was carefully engineered. Two overlapping screws work with the offset baffles along the tub wall to produce a consistent mix of feedstuffs. The complimentary design of the tub and screw helps move material from the front to the back in a clockwise motion.
Efficient cleanout
The last place operators want their ration left is in the bottom of the tub. With two bi-pulse legs and the leading edge of the screw, three points of contact are formed with the tub floor to encourage thorough cleanout.
Optional stainless steel liner
With the option to add a stainless steel liner to the tub, operators can be confident their mixer will withstand various types of feedstuffs for minimized rust and maximized durability.
Optional bi-directional discharge
For operations that do the majority of their feeding in an alleyway, optional bi-directional discharge makes feeding convenient. Feed on either the right or left side of your alley when traveling between pens or multiple buildings.
4-point scale with Bluetooth connectivity
With a 4-point scale, producers can rely on their mixer to help provide an accurate weight readout. Vermeer scales are equipped with Bluetooth connectivity, letting producers see weight information on their smartphone or tablet.
DIMENSIONS AND WEIGHTS | |
Loading height - standard | 123 in |
Machine weight - standard | 15580 lbs |
Maximum net load | 21000 lbs |
Total length | 277 in |
Transport width - 50-in folding conveyor extension | 113 in |
Working width - 50-in folding conveyor extension | 130 in |
Tires (retread) | Standard 425/65R-22.5; Optional 255/70R-22.5 dual |
TUB AND SCREWS | |
Capacity | 750 cu ft |
Number of screws | 2 |
Number of knives per screw | 7 |
Tub wall thickness | 1/4 in (6.4 mm) |
Tub wall materialAR200 | |
Floor thickness | 3/4 in (19.1 mm) |
Screw flighting thickness | 5/8 in (15.9 mm) |
Screw flighting material | AR200 |
DISCHARGE SYSTEM | |
Discharge style | Front conveyor |
Discharge Direction | Left or right |
Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
Rear discharge door | Optional |
TRACTOR REQUIREMENTS | |
Minimum PTO horsepower | 150 hp (2-speed) (110 kW) |
Recommended PTO horsepower | 180 hp |
DRIVE SYSTEM | |
Driveline | 1,000 rpm, CV |
Two-speed gearbox | Optional |
Torque Protection | Shear bolt |
Screw rpm | 39 (1-speed); 39/26 (2-speed) |
SCALE SYSTEM | |
Scale display | Digi-Star EZ2810-BT |
Number of weigh bars | 4 |
Bluetooth connectivity | Standard |
Remote Display | Optional |
