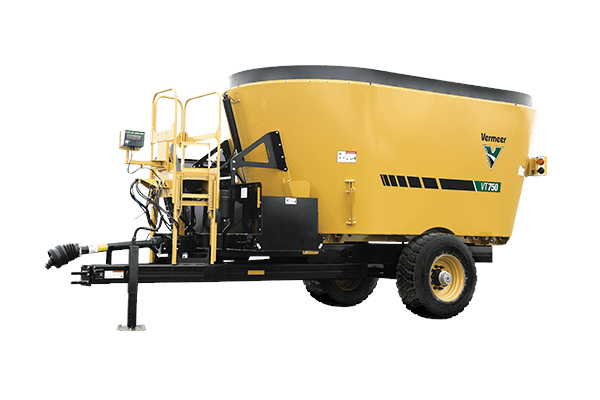

Built tough for years of heavy use, the VT750 Premium twin-screw vertical mixer has robust features and smart technology to help save you time and labor.
Boasting all the benefits of the VT750 twin-screw vertical mixer, the Vermeer VT750 Premium twin-screw vertical mixer also has a thicker tub, thicker floor and thi... + Read More
Screw design
Consistent rations are critical when using a vertical mixer. To achieve the optimal mix, Vermeer twin-screw mixers are equipped with overlapping screws and offset baffles along the tub wall. The design of tub and screws work together to move material between the screws to get a thorough mix.
Efficient cleanout
Vermeer mixers use two bi-pulse legs and the leading edge of the screw to form three points of contact with the tub floor for optimal cleanout. These three points of contact also work together to allow even distribution on the discharge conveyor and into the bunk.
Optimal stainless steel liner
An optional stainless steel liner helps provide added durability to withstand higher-acidity feedstuffs.
Optional bi-directional discharge
Optional bi-directional discharge allows operators to choose to feed on either the right or left side of alleyways to minimize time spent between pens or multiple buildings. This feature works best for operations that do the majority of their feeding in an alleyway rather than in a bunk.
Upgraded durability
The VT750 Premium twin-screw vertical mixer has all the features of the VT750 twin-screw vertical mixer, but with thicker sidewalls, thicker tub floor and thicker screw flighting for maximized strength, durability and longevity.
4-point scale with standard remote display and Bluetooth connectivity
Premium models are equipped with an additional remote display for visibility to the accurate weight-reads from the 4-point scale. Producers can also view weight from their scale indicator or their smart device via standard Bluetooth connectivity.
DIMENSIONS AND WEIGHTS | |
Loading height - standard | 123 in |
Machine weight - standard | 17535 lbs |
Maximum net load | 21000 lbs |
Total length | 277 in |
Transport width - 50-in folding conveyor extension | 113 in |
Working width - 50-in folding conveyor extension | 130 in |
Tires (retread) | Standard 255/70R-22.5 dual; Optional 425/65R-22.5 |
TUB AND SCREWS | |
Capacity | 750 cu ft |
Number of screws | 2 |
Number of knives per screw | 7 |
Tub wall thickness | 3/8 in (9.5 mm) |
Tub wall material | AR200 |
Floor thickness | 1 in (2.5 cm) |
Screw flighting thickness | 3/4 in (19.1 mm) |
Screw flighting material | AR200 |
DISCHARGE SYSTEM | |
Discharge style | Front conveyor |
Discharge Direction | Left or right |
Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
Rear discharge door | Optional |
TRACTOR REQUIREMENTS | |
Minimum PTO horsepower | 150 hp (2-speed) (110 kW) |
Recommended PTO horsepower | 180 hp |
DRIVE SYSTEM | |
Driveline | 1,000 rpm, CV |
Two-speed gearbox | Optional |
Torque Protection | Shear bolt |
Screw rpm | 39 (1-speed); 39/26 (2-speed) |
SCALE SYSTEM | |
Scale display | Digi-Star EZ2810-BT |
Number of weigh bars | 4 |
Bluetooth connectivity | Standard |
Remote Display | Standard |
