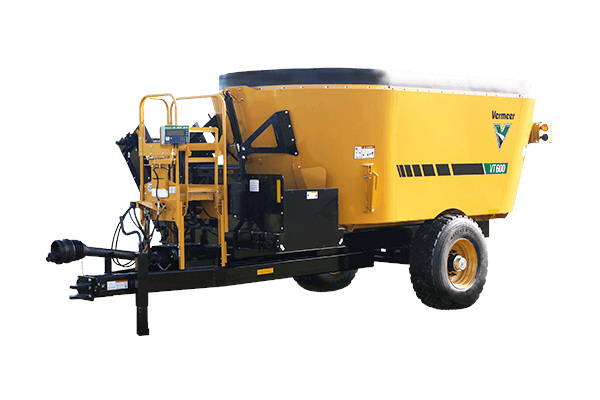

Two overlapping screws optimize mix quality and cleanout capabilities, making the VT600 twin-screw vertical mixer a valuable performer.
Looking for thorough mixing, optimal cleanout and low loading height? If so, the Vermeer VT600 twin-screw vertical mixer is for you. This mixer features a low loading height at 109 ... + Read More
Screw design
Twin-screw mixers from Vermeer feature an overlapping screw design. Together, the screw design works with the offset baffles to move feedstuffs from the front to the back of the tub, in a clockwise motion between the screws for an appropriately blended mix.
Efficient cleanout
Two bi-pulse legs and the leading edge of the screw make up three points of contact with the tub floor to help improve cleanout over only one or two points of contact. This helps feedstuffs be evenly distributed onto the discharge conveyor for feeding.
4-point scale with Bluetooth connectivity
Every pound of feed counts. That’s why the Vermeer vertical mixers are equipped with a 4-point scale. With optimal accuracy, operators can focus on feeding accurate rations to multiple different pens. Bluetooth connectivity comes standard with the Digi-Star scale, giving operators the ability to view load weight from their smart device.
Heavy-duty planetary
The tractor’s PTO powers the screw through a planetary specifically designed to help extend machine life. This makes this machine ready for long-lasting performance.
DIMENSIONS AND WEIGHTS | |
Loading height - standard | 109 in |
Machine weight - standard | 1380 lbs |
Maximum net load | 19000 lbs |
Total length | 273 in |
Transport width - 50-in folding conveyor extension | 113 in |
Working width - 50-in folding conveyor extension | 130 in |
Tires (retread) | Standard 425/65R-22.5; Optional 255/70R-22.5 dual |
TUB AND SCREWS | |
Capacity | 600 cu ft |
Number of screws | 2 |
Number of knives per screw | 5 |
Tub wall thickness | 1/4 in (6.4 mm) |
Tub wall material | AR200 |
Floor thickness | 3/4 in (19.1 mm) |
Screw flighting thickness | 5/8 in (15.9 mm) |
Screw flighting material | AR200 |
DISCHARGE SYSTEM | |
Discharge style | Front conveyor |
Discharge Direction | Left or right |
Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
Rear discharge door | Optional |
TRACTOR REQUIREMENTS | |
Minimum PTO horsepower | 140 hp (100 kW) |
Recommended PTO horsepower | 150 hp |
DRIVE SYSTEM | |
Driveline | 1,000 rpm, CV |
Two-speed gearbox | Optional |
Torque Protection | Shear bolt |
Screw rpm | 39 (1-speed); 39/26 (2-speed) |
SCALE SYSTEM | |
Scale display | Digi-Star EZ2810-BT |
Number of weigh bars | 4 |
Bluetooth connectivity | Standard |
