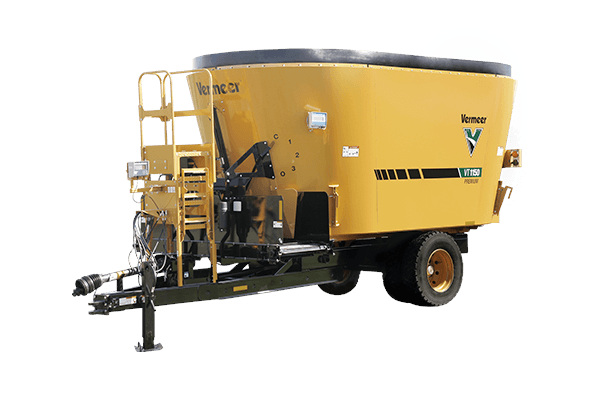

The VT1150 Premium twin-screw vertical mixer offers more, from more durable components to a larger capacity. It's a premium product for a premium producer.
With a heavy-duty planetary and larger size for maximum load capacity, the VT1150 Premium twin-screw vertical mixer is ideal for large operations. A standard pla... + Read More
Screw design
Feedstuffs mix more appropriately when going between both chambers of the tub. This is accomplished with an overlapping screw design and offset baffles placed on the tub wall, helping achieve a consistent, thorough mix.
Efficient cleanout
Operators can be satisfied knowing the VT1150 Premium works to minimize feed left in the tub. Two bi-pulse legs, plus the leading edge of the screw, team up to create three points of contact with the tub floor to minimize cleanout time compared to mixers with only one or two points of contact with the floor.
Optional stainless steel liner
The VT1150 Premium has an optional stainless steel liner that helps prevent rust in the tub of the mixer, especially when using feedstuffs with a higher acidity.
Commercial-grade planetary with standard cooling system
The gearbox in the VT1150 Premium features an extra heavy-duty planetary. A standard cooling system helps keep the planetary from overheating so the mixer can be used like it’s built to be used — all day, every day.
Upgraded durability
Premium mixers from Vermeer are required to have increased steel thickness on the tubs, floor and screw flighting. The VT1150 Premium's tub wall and screw flighting are made from abrasion-resistant AR200 steel.
4-point scale with Bluetooth connectivity
The Premium vertical mixers allow operators to view weight readouts from three different places: standard display, smart device via Bluetooth technology or from the additional remote display. The additional remote display helps provide visibility when loading feedstuffs.
DIMENSIONS AND WEIGHTS | |
Loading height - standard | 139 in |
Machine weight - standard | 24800 lbs |
Maximum net load | 30000 lbs |
Total length | 303 in |
Transport width - 50-in folding conveyor extension | 120 in |
Transport width - 119-in bi-directional conveyor | 119 in |
Working width - 50-in folding conveyor extension | 138 in |
Working width - 119-in bi-directional conveyor | 119 in |
Tires (retread) | Standard 315/80R-22.5 dual; Optional 255/70R-22.5 dual, tandem; 445/50R-22.5 tandem |
TUB AND SCREWS | |
Capacity | 1150 cu ft |
Number of screws | 2 |
Number of knives per screw | 141 |
Tub wall thickness | 3/8 in (9.5 mm) |
Tub wall material | AR200 |
Floor thickness | 1 in (2.5 cm) |
Screw flighting thickness | 3/4 in (19.1 mm) |
Screw flighting material | AR200 |
DISCHARGE SYSTEM | |
Discharge style | Front conveyor |
Discharge Direction | Left or right |
Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
Rear discharge door | Optional |
TRACTOR REQUIREMENTS | |
Minimum PTO horsepower | 190 hp (2-speed) (140 kW) |
Recommended PTO horsepower | 220 hp |
DRIVE SYSTEM | |
Driveline | 1,000 rpm, CV |
Two-speed gearbox | Optional |
Torque Protection | Shear bolt |
Screw rpm | 34 (1-speed); 34/23 (2-speed) |
SCALE SYSTEM | |
Scale display | Digi-Star EZ2810-BT |
Number of weigh bars | 4 |
Bluetooth connectivity | Standard |
Remote Display | Standard |
