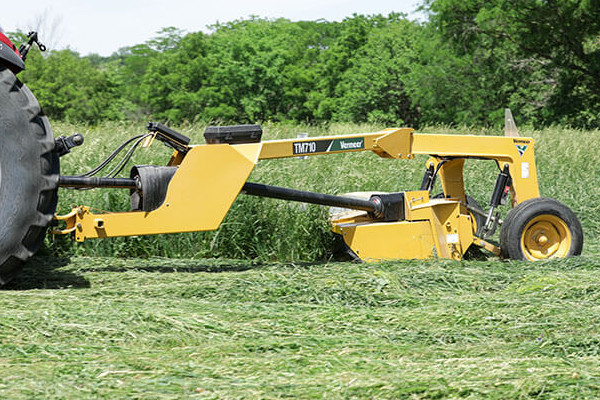

Trailed Mowers TM710
The TM710 trailed mowers offer simplicity. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field. Toolless adjustments allow users to set the suspension between fields. The Quick-Clip® blade retention system lives up to its name. Horsepower requirements... + Read More
Features
EASY HITCH HOOKUP
Hitch up easily. The hookup procedure is straightforward; after the hitch, PTO and hydraulics are connected it’s ready to go to the field.
LOW HORSEPOWER REQUIREMENTS
Goes easy on horsepower, only requiring a 55 hp (41 kW) tractor for a 9.2 ft (2.8 m) cut.
PATENTED RUBBER TORSION DESIGN
Absorbs shock loads with a patented rubber torsion design that keeps the weight of the cutter bar on the ground until it needs to float over field obstacles.
HYDRAULIC SWING CYLINDER
Maneuvers around obstacles with ease, thanks to the hydraulic swing cylinder.
QUICK-CLIP BLADE RETENTION SYSTEM
Replace blades in seconds using the exclusive Quick-Clip™ blade retention system.
Specs
| DIMENSIONS AND WEIGHTS | |
| Transport Height | 46 in |
| Transport width - standard | 9.4 ft |
| Transport Length | 15.3 ft |
| Cutting Width | 9.2 ft |
| Working Height | 46 in |
| Working Width | 13.6 ft |
| Working Length | 14.3 ft |
| Total Weight | 2200 lbs |
| Tongue Weight | 630 lbs |
| Suspension | Rubber torsion |
| Torque Protection | Driveline: friction disc clutch |
| Tires | 27x9.5-15 |
| TRACTOR REQUIREMENTS | |
| Tongue/hitch | Drawbar |
| Drive PTO | 540 rpm |
| PTO horsepower recommended | 55 hp |
| Hydraulic Type | 2 double-acting (1 double-acting with optional kit) |
| Hydraulic Pressure | 1250 psi |
| Hydraulic flow rate | 6 gpm |
| CUTTER BAR | |
| Cutter bar type | Standard |
| Cut height | 1.3 in - 3 in (3.2 cm - 7.6 cm) |
| Number of Discs | 7 |
| Disc Diameter | 19.7 in |
| Disc Speed | 2797 rpm |
| Number of Blades | 14 |
| Angle Adjustment | Manual turnbuckle |
| Quick Clip® blade retention system | Standard |
| Curtain material | 1 ply 1/8 in rubber |
| 3-year limited cutter bar warranty | Standard |
| FEATURES | |
| Optional swath formation | Optional swathboard |
| Skid Shoes | Standard modular independent skid shoes; Optional topping wear skids |
