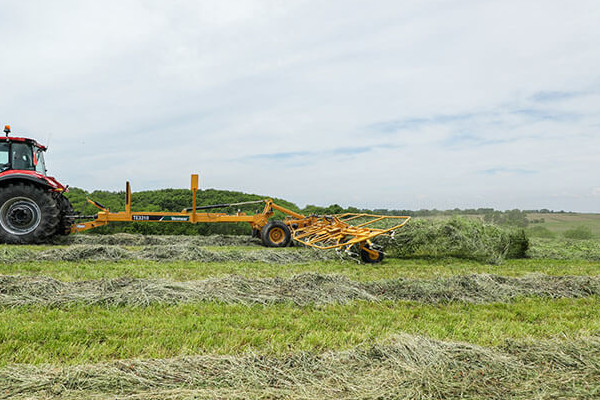

Tedders TE3310
Forget the sit-and-wait method. Speed up dry-down time by 20 to 30 percent* with the 33 ft (10.2 m) Vermeer TE3310 tedder.
A unique hook tine design allows the tedder to pick up and spread large amounts of crop by creating a “bottoms-up” motion for even distribution and quick crop aeration.
The large, durable bas... + Read More
Features
HOOK TINES
Hook tines staggered in length are designed to help wet crop on bottom be gently placed on top for a quick, consistent dry down.
LARGE, DURABLE TIRES
Large, durable tires supported by strong spindles allow for ground contouring and flotation with quiet and convenient transport from field to field.
HEAVY-DUTY, SOLID-FRAME CONSTRUCTION
Designed and built in North America for farmers and ranchers in North America. Heavy-duty, solid-frame construction provides stability and durability, while the radial pin clutch protects the drive components and center gearbox. The reinforced tongue offers longevity to help 10-series tedders perform year after year.
ADJUSTABLE BASKET ANGLE AND HEIGHT
Convenient adjustments to basket angle and height allow operators to match the field and crop conditions.
Specs
| DIMENSIONS AND WEIGHTS | |
| Tedding width | 33.5 ft |
| Transport Height | 9.5 ft |
| Transport Width | 9.8 ft |
| Transport Length | 15.3 ft |
| Total Weight | 5200 lbs |
| Tongue Weight | 1260 lbs |
| Tire size | 18.5 x 8.5-8 |
| Transport tire size | 31 x 13.5-15 |
| Basket tilt and adjustment | Hydraulic, adjustable by changing wheel frame/main frame mount |
| Number of Baskets | 8 |
| Tine Arms per Basket | 7 |
| Type of Tine | Hook tine |
| Torque protection driveline | Radial pin clutch |
| TRACTOR REQUIREMENTS | |
| PTO Horsepower Requirements | 60 hp |
| Hydraulic requirements | 2 double-acting with floating position |
| Hydraulic pressure minimum | 2100 psi |
| Hitch | Drawbar clevis connection |
| Drive PTO | 540 rpm |
| FEATURES | |
| SMV Sign | Standard |
