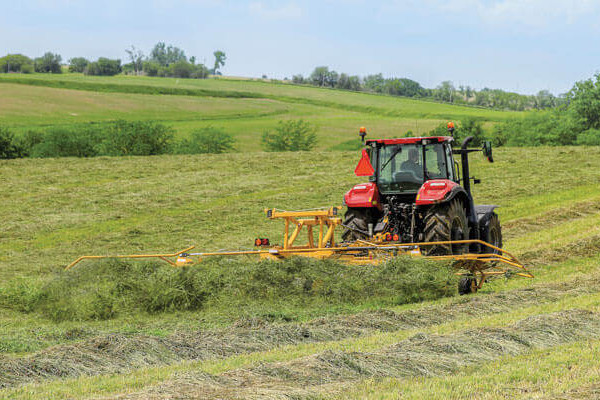

Forget the sit-and-wait method. Speed up dry-down time by 20 to 30 percent* with the 25 ft (7.6 m) Vermeer TE2510 tedder.
A unique hook tine design allows the tedder to pick up and spread large amounts of crop by creating a “bottoms-up” motion for even distribution and quick crop aeration.
The large, durable bas... + Read More
HOOK TINES
Hook tines staggered in length are designed to help wet crop on bottom be gently placed on top for a quick, consistent dry down.
HEAVY-DUTY, SOLID-FRAME CONSTRUCTION
Designed and built in North America for farmers and ranchers in North America. Heavy-duty, solid-frame construction provides stability and durability, while the radial pin clutch protects the drive components and center gearbox. The reinforced tongue offers longevity to help 10-series tedders perform year after year.
LARGE, DURABLE TIRES
Large, durable tires supported by strong spindles allow for ground contouring and flotation with quiet and convenient transport from field to field.
ADJUSTABLE BASKET ANGLE AND HEIGHT
Convenient adjustments to basket angle and height allow operators to match the field and crop conditions.
DIMENSIONS AND WEIGHTS | |
Tedding width | 25 ft |
Transport Height | 9.8 ft |
Transport Width | 9.8 ft |
Transport Length | 15.3 ft |
Total Weight | 3200 lbs |
Tongue Weight | 900 lbs |
Tire size | 18.5 x 8.5-8 |
Basket tilt and adjustment | Hydraulic, adjustable by changing wheel frame/main frame mount |
Number of Baskets | 6 |
Tine Arms per Basket | 6 |
Type of Tine | Hook tine |
Torque protection driveline | Radial pin clutch |
TRACTOR REQUIREMENTS | |
PTO Horsepower Requirements | 47 hp |
Hydraulic requirements | 1 double-acting with floating position |
Hydraulic pressure minimum | 2100 psi |
Hitch | Drawbar clevis connection |
Drive PTO | 540 rpm |
FEATURES | |
SMV Sign | Standard |
