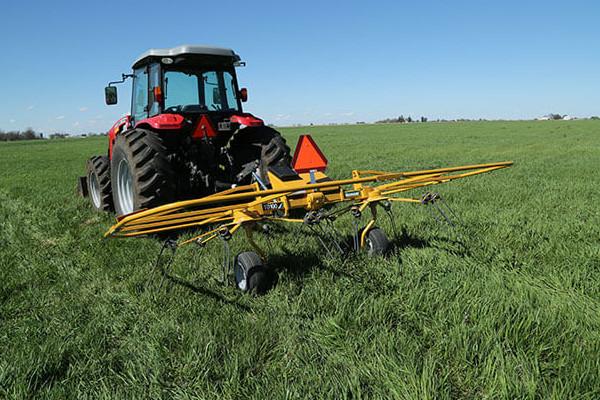

Tedders TD100
Designed for speed, convenience and reliability, and priced for the budget-conscious operator.
The TD100 delivers a compact 10 ft (3 m) tedding width with two rotors for smooth, gentle handling at maximum ground speeds, even when handling heavy, matted-down windrows. It’s the affordable, no-frills tedder you’ve been waiting for.
Features
LARGE TIRES
Float over your fields with the 16 in (40.6 cm) x 6 in (15.2 cm) tires — larger than previous TD series tedders. Large tires can offer increased durability by offering a smoother ride, which reduces machine wear.
SIX DOUBLE TINES PER BASKET
Six double tines on each basket help to gently pick up a small quantity of forage, flip it and lay it back on the ground without damage or ash. The tender turn of the hay helps quicken dry down time by exposing the crop to sun and air. Decreasing dry down time allows you to get the hay off the field sooner.
TOOLLESS PITCH ADJUSTMENT
The toolless pitch adjustment crank allows you to set proper pitch adjustment, which is crucial to get an accruate flip of the hay. Accurate pitch adjustments minimizes ash content and wear on the machine.
Specs
| DIMENSIONS AND WEIGHTS | |
| Tedding width | 10 ft |
| Transport Height | 8.8 ft |
| Transport Width | 11.6 ft |
| Transport Length | 10.4 ft |
| Total Weight | 670 lbs |
| Tongue Weight | 88 lbs |
| Tire size | 16 x 6.5-8 |
| Basket tilt and adjustment | Manual crank |
| Number of Baskets | 2 |
| Tine Arms per Basket | 6 |
| Type of Tine | Straight tine |
| Torque protection driveline | Radial pin clutch |
| TRACTOR REQUIREMENTS | |
| PTO Horsepower Requirements | 15 hp |
| Hitch | Drawbar clevis connection |
| Drive PTO | 540 rpm |
| FEATURES | |
| SMV Sign | Standard |
