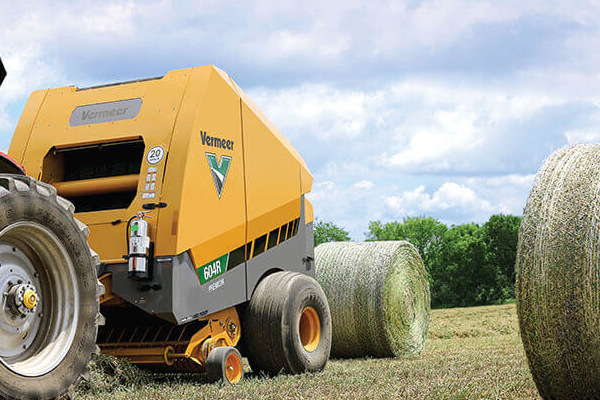

Round Hay Balers 604R Premium Baler
High-producing haymakers have told us they want three things in their baler: they want it to be strong, fast and smart. So, we got to work to design and build the latest baler from Vermeer — the 604R Premium baler. It may have a new look, but what’s inside and comes out the back of the baler is what matters most. This is premium haymaking.
Features
SMART FEATURES
Between the auto-eject system that can tie the bale and open and close the tailgate without operator assistance and the net lift system that lifts the roll of netwrap for the operator, this machine provides a smarter, more efficient way to make hay.
INCREASED CAPACITY
Increased capacity is achieved by belts that spin 19 percent faster than the 604R Signature which allow hay to enter the chamber faster and the bale to tie quicker. Bale density can be controlled in cab from the Atlas Pro™ control system monitor allowing operators to decide how dense to make the bale. The 604R Premium baler can produce bales up to 30% more dense when compared to the 604R Classic and Signature.
CAMLESS PICKUP
At 71-in (180.3-cm) wide, this camless pickup with rubber-mounted pickup teeth and new poly pickup bands is designed to maximize productivity and help reduce maintenance related to wear parts (the 604R balers have 30 fewer parts compared to previous cammed pickup balers).
Specs
| BALE SIZE | |
| Bale diameter | 36 in-72 in (91.4 cm-182.9 cm) |
| Bale width | 47 in |
| Bale weight* | 2400 lbs |
| DIMENSIONS AND WEIGHTS | |
| Length standard | 184 in |
| Length with net | 184 in |
| Length with ramp | 206 in |
| Height | 121 in |
| Width with standard tires | 115 in |
| Tires | 21.5L - 16.1 flotation tires |
| Weight fully optioned | 8020 lbs |
| BALE FORMING CHAMBER | |
| Drive roller size | 5.5 in (14 cm) |
| Idler roller size | 3.5 in (8.9 cm), 4.8 in (12.1 cm) |
| Start roller size | 5.3 in |
| Belt type | Premium mini rough top |
| Number of belts | 6 |
| Width of Belt | 6.8 in |
| Length of belt (long) | 563.5 in |
| Length of belt (short) | 557 in |
| Type of lace | Alligator rivet |
| Silage kit | Standard |
| DRIVE SYSTEM | |
| Driveline | Standard: 540 rpm, standard lube, Automatic clutch; Optional: 1000 rpm, extended lube, automatic clutch |
| Roller chains | Single 80 and 100 |
| Torque protection pickup | Radial pin clutch |
| Bearing and sprocket configuration | Hex drive shafts and bearings |
| TRACTOR REQUIREMENTS | |
| PTO horsepower required | 85 hp |
| PTO horsepower recommended | 105 hp |
| PICKUP | |
| Pickup Type | Camless wide |
| Width tooth to tooth | 70.5 in |
| Width on outside flair | 73.8 inc |
| Tooth Bars | 5 |
| Number of Teeth | (70) double rubber-mounted |
| Teeth spacing | 2.83 in (7.2 cm) |
| Stipper bands | Poly |
| Floatation | Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist |
| Pickup Lift | Hydarulic |
| 3-year pickup warranty | Standard |
| CONTROL SYSTEM | |
| Control system type | Atlas Pro™ control system |
| Display | 7 in (17.8 cm) color touch screen |
| Field statistics | 50 fields and names |
| Field statistics download | USB |
| Bale shape indicators | Standard |
| Moisture | Standard - up to 27% |
| Bale per hour | Standard |
| Auto eject | Standard |
| DENSITY | |
| Bale density adjustments | Standard through control system monitor |
| Density Readings | Digital gauge |
| Cylinder size | 3 in (7.6 cm) for a 30% density increase |
| BALE TIE SYSTEM | |
| Twine system | Optional |
| Netwrap system | Standard |
| Net gauge via control system | Standard |
| Net tension control | via control system |
| Netlift system | Standard |
| Extra roll storage | Standard |
| FEATURES | |
| Bale ramp | Hydraulic |
| Auto Lube greasing system | Standard |
| Right-hand door | Standard |
| LED maintenance lights | Standard |
| Fire extinguisher, safety chain | Optional |
