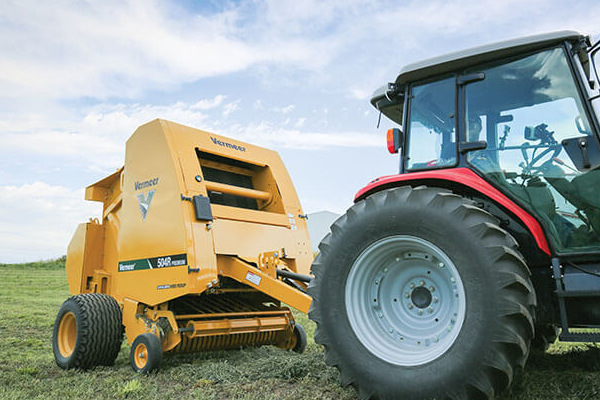

Round Hay Balers 504R Premium Baler
The Vermeer 504R Premium baler is fully loaded and comes standard with a silage kit specially designed for high output of high-moisture crops. This package offers more capacity in heavy crops and produces good looking bales in tough conditions. Silage or not, this is your first-class baler.
Features
STANDARD SILAGE KIT
As baleage gains popularity across North America, operators demand a baler that is specially designed and built to handle it. The 504R Premium comes with a standard silage kit, ready for your high-moisture hay needs.
HEAVY-DUTY COMPONENTS
With heavy-duty components, like “rock” belts, optional endless belts and optional float tires, this baler is designed for maximum productivity and output.
ATLAS CONTROL SYSTEM
The Atlas™ control system delivers robust performance in a simple and intuitive package. A 4.3-in (10.9-cm) color touchscreen displays everything you need to bale and allows operators to enter field statistics to track bales per hour and average bale size. Optional features include ability to see bale shape on the display as well as real-time moisture readings.
CAMLESS WIDE PICKUP
The 504R Premium comes equipped with a 60-in (152.4-cm) camless wide pickup. This pickup has minimal moving parts to help minimize maintenance and parts costs.
3-YEAR PICKUP WARRANTY
A 3-year pickup warranty covering internal components and parts and labor assures operators their baler is built to last. *Does not include teeth or hardware for teeth.
Specs
| BALE SIZE | |
| Bale diameter | 36 in-60 in (91.4 cm-152.4 cm) |
| Bale width | 47 in |
| Bale weight* | 2000 lbs |
| DIMENSIONS AND WEIGHTS | |
| Length standard | 156 in |
| Length with net | 173 in |
| Length with ramp | 169 in |
| Height | 111 in |
| Width with standard tires | 100 in |
| Tires | Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire |
| Weight fully optiones | 5460 lbs |
| BALE FORMING CHAMBER | |
| Drive roller size | 4.78 in (12.1 cm) |
| Idler roller size | 3.5 in (8.9 cm) |
| Start roller size | 4.5 in |
| Number of belts | 6 |
| Width of belt | 6.8 in |
| Length of belt (long) | 465.5 in |
| Length of belt (short) | 455.5 in |
| Type of lace | Alligator rivet or no laces (endless belts) |
| Silage Kit | Standard |
| DRIVE SYSTEM | |
| Driveline | 540 rpm, extended lube, friction clutch |
| Torque protection pickup | Radial pin clutch |
| Roller chains | Single 60 and 80 |
| Bearing and sprocket configuration | Round drive shafts and bearings |
| TRACTOR REQUIREMENTS | |
| PTO horsepower required | 55 hp |
| PTO horsepower recommended | 65 hp |
| PICKUP | |
| Pickup type | Camless wide |
| Width tooth to tooth | 60 in |
| Tooth Bars | 5 |
| Number of Teeth | (60) double steel coil |
| Teeth spacing | 2.83 in (7.2 cm) |
| Stripper bands | Steel |
| Flotation | Gauge wheels 4.8-16 HD semi-pneumatic with spring assist |
| Pickup Lift | Hydraulic |
| 3-year pickup warranty | Standard |
| CONTROL SYSTEM | |
| Control system type | Atlas™ control system |
| Display | 4.3 in (10.9 cm) color touch screen |
| Field Statistics | 10 fields |
| Bale shape indicators | Standard |
| Moisture | Standard - up to 27% |
| Bales per hour | Standard |
| DENSITY | |
| Bale density adjustments | Standard manual through hydraulic relief valve |
| Density readings | Physical gauge |
| BALE TIE SYSTEM | |
| Twine system | Optional |
| Netwrap system | Standard |
| Net tension control | via mechanical adjustment |
| Extra roll storage | Standard |
| FEATURES | |
| Bale ramp | Spring-loaded |
| Auto Lube greasing system | Optional |
| Grease bank | Standard |
| Right-hand door | Standard |
| LED maintenance lights | Optional |
| Fire extinguisher, safety chain | Optional |
