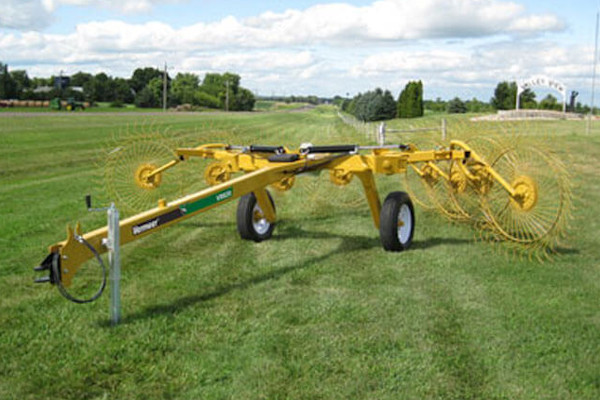

Rakes VR820 Carted Wheel Rake
Just like other Vermeer innovations, the VR820 carted wheel rake combines high performance and superior reliability with features that make it easy to operate. Rake field after field with ease, thanks to a rugged channel tongue with adjustable hitch heights and telescoping tool bars that allow you to change raking and ... + Read More
Features
EIGHT WHEELS PER WING
Rake up to 20 ft (6 m) in each pass with eight wheels on each wing.
ADJUSTABLE RAKE WITHOUT TOOLS
No tool adjustment because raking width and angle can be changed easily without tools to increase or decrease windrow size.
GREASEABLE TAPERED ROLLER BEARINGS
Keep it running smooth with greaseable tapered roller bearings on the rake wheels and transport wheels.
HIGH-CLEARANCE FRAME
High-clearance frame allows for heavy hay crops to pass through easily for windrow formation.
Specs
| DIMENSIONS AND WEIGHTS | |
| Raking Width - Minimum | 16.6 ft |
| Raking Width - Maximum | 19 ft |
| Windrow Width - Minimum | 31 in |
| Windrow Width - Maximum | 80 in |
| Transport Width | 10 ft |
| Transport Length | 20 ft |
| Transport Height | 9.4 ft |
| Total Weight | 1370 lbs |
| Tongue Weight | 200 lbs |
| Transport tire size | ST205-75D15 |
| Flotation | Rubber torsion on toolbar |
| RAKING COMPONENTS | |
| Number of Rake Wheels | 8 |
| Rake wheel diameter | 55 in |
| Teeth per wheel | 40 |
| Tooth diameter | .3 in |
| Rake wheel wind discs | Optional |
| Single-side raking | Standard left- or right-side capable |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 30 hp |
| Hydraulic Type | 1 double-acting |
| Hydraulic Pressure | 1500 psi |
| Hydraulic flow rate | 5 gpm |
| FEATURES | |
| Safety Chain | Optional |
| Center splitter | Optional |
