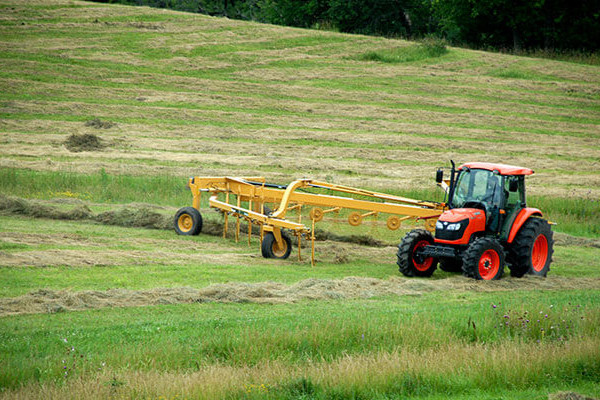

Rakes VR1428 High-Capacity Wheel Rake
The heavy-duty VR1428 high-capacity wheel rake is capable of raking 28 ft (8.5 m) wide in one pass – yet nimble enough to maneuver like rakes much smaller in size. It offers producers more capacity and the ability to handle more acres in less time, with fewer maintenance issues by combining rugged construction, smart, ... + Read More
Features
EASILY ADJUSTABLE RAKE WHEEL SETTINGS AND PRESSURE
With a lift/suspension cylinder on each wheel and the nitrogen-charged accumulator, changing rake wheel settings and pressure is easy! Simply change the pressure settings on the accumulator.
HEAVY-DUTY CONSTRUCTION
Heavy-duty construction throughout – non-telescoping, non-bolted joint straight tongue, as well as bent tube frame and fold arms.
CLOSELY POSITIONED TO TRACTOR
Handles like many smaller-capacity rakes because it’s closely positioned to the tractor when operating in the rake position.
OPTIONAL CENTER SPLITTER ATTACHMENT
Adopted from the Vermeer VR-Series carted wheel rakes, the highly popular, optional center splitter attachment provides an exclusive dual rake wheel configuration that gently sweeps and turns the crop in the center of the swath.
Specs
| DIMENSIONS AND WEIGHTS | |
| Raking width minimum | 22 ft |
| Raking width maximum | 28 ft |
| Windrow width minimum | 36 in |
| Windrow width maximum | 72 in |
| Transport Width | 10.5 ft |
| Transport Length | 31.1 ft |
| Transport Height | 6.3 ft |
| Total Weight | 5040 lbs |
| Tongue Weight | 1300 lbs |
| Transport tire size | 11L-15 |
| Flotation | Hydraulic |
| Drive | Hydraulic |
| RAKING COMPONENTS | |
| Number of Rake Wheels | 14 |
| Rake wheel diameter | 55 in |
| Teeth per wheel | 40 |
| Tooth diameter | .3 in |
| Rake wheel wind discs | Optional |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 40 hp |
| Hydraulic Type | 3 double-acting |
| Hydraulic Pressure | 1500 psi |
| Hydraulic flow rate | 5 gpm |
| FEATURES | |
| Highway Lights | Standard |
| Safety Chain | Optional |
| Center splitter | Optional |
