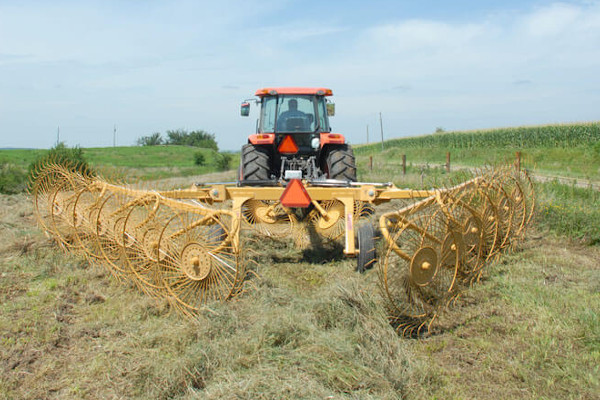

The VR1224 carted wheel rake gives you the capacity, strength and wide-stance balance and posture you need for a heavy diet of hay, starting with the very first cutting. This ruggedly reliable rake cruises across the landscape to get you in and out of the field fast. The VR1224 can be easily adjusted for single- or dou... + Read More
EASILY ADJUSTABLE WINDROW WIDTH
Easily adjustable windrow width to conveniently fit the intake of your baler.
PATENTED RUBBER TORSION SUSPENSION
Patented rubber torsion suspension ensures clean hay and extends tooth life.
SINGLE- OR DOUBLE-SIDED RAKING
Single- or double-sided raking is quick, convenient and easy.
CENTER SPLITTER ATTACHMENT
Uniquely designed center splitter attachment helps balance windrow moisture content and improves dry down.
DIMENSIONS AND WEIGHTS | |
Raking width minimum | 19.9 ft |
Raking width maximum | 24.4 ft |
Windrow width minimum | 21 in |
Windrow width maximum | 98 in |
Transport Width | 10.2 ft |
Transport Length | 23 ft |
Transport Height | 8.5 ft |
Total Weight | 1812 lbs |
Tongue Weight | 230 lbs |
Transport tire size | ST205/75D15 |
Flotation | Rubber torsion on toolbar |
RAKING COMPONENTS | |
Number of Rake Wheels | 12 |
Rake wheel diameter | 55 in |
Teeth per wheel | 40 |
Tooth diameter | .3 in |
Rake wheel wind discs | Optional |
Single-side raking | Standard left- or right-side capable |
TRACTOR REQUIREMENTS | |
PTO horsepower minimum | 30 hp |
Hydraulic Type | 1 double-acting |
Hydraulic Pressure | 1500 psi |
Hydraulic flow rate | 5 gpm |
FEATURES | |
Safety Chain | Optional |
Center splitter | Optional |
