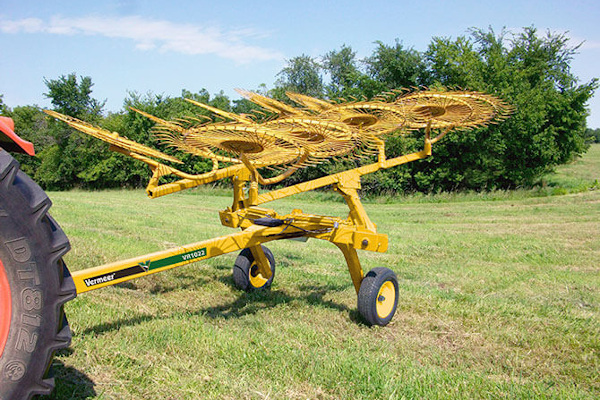

Rakes VR1022 Carted Wheel Rake
When you’re making hay, you need the reliability, strength and high performance capability of the VR1022 Carted Wheel Rake. Featuring a number of Vermeer innovations, the VR1022 is easy to operate and built for high-volume raking. Take on each field with adjustable hitch heights and telescoping tool bars that allow you... + Read More
Features
FIVE WHEELS PER WING
Rake up to 22 ft (6.9 m) in each pass with five wheels on each wing.
ADJUSTABLE RAKE WITHOUT TOOLS
No tool adjustment because raking width and angle can be changed easily without tools to increase or decrease windrow size.
GREASEABLE TAPERED ROLLER BEARINGS
Keep your Vermeer hay rake running smooth with greaseable tapered roller bearings on the rake wheels and transport wheels.
HIGH-CLEARANCE FRAME
High-clearance frame allows for heavy hay crops to pass through easily for windrow formation.
Specs
| DIMENSIONS AND WEIGHTS | |
| Raking width minimum | 19 ft |
| Raking width maximum | 22.6 ft |
| Windrow width minimum | 19 in |
| Windrow width maximum | 82 in |
| Transport Width | 10 ft |
| Transport Length | 20.2 ft |
| Transport Height | 9.4 ft |
| Total Weight | 1520 lbs |
| Tongue Weight | 300 lbs |
| Transport tire size | ST205/75D15 |
| Flotation | Rubber torsion on toolbar |
| RAKING COMPONENTS | |
| Number of Rake Wheels | 10 |
| Rake wheel diameter | 55 in |
| Teeth per wheel | 40 |
| Tooth diameter | .3 in |
| Rake wheel wind discs | Optional |
| Single-side raking | Standard left- or right-side capable |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 30 hp |
| Hydraulic Type | 1 double-acting |
| Hydraulic Pressure | 1500 psi |
| Hydraulic flow rate | 5 gpm |
| FEATURES | |
| Safety Chain | Optional |
| Center splitter | Optional |
