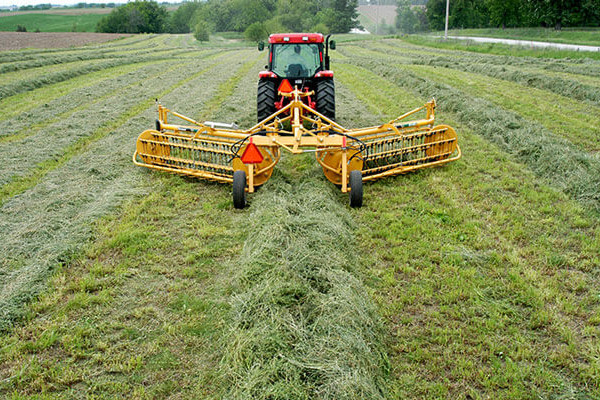

Rakes R2300 Twin Rake
The secret to good bales starts with, box-shaped windrows. That’s what the Vermeer R2300 TwinRake is designed to produce. Built to last, the R2300 allows you to adjust the width of the windrows to match your baler. Control the width, basket lift and folding/unfolding systems right from the cab of your tractor.
Features
RUBBER-MOUNTED RAKE TEETH
Keep hay clean because the hydraulically driven baskets have rubber-mounted rake teeth that engage the crop, not the ground.
IMPROVED TINE DESIGN
Built for durability with a proven design that prevents the tines from engaging the ground.
LARGE, CASTER-TYPE WHEELS
Glide over uneven terrain with large, caster-type wheels to cushion your ride.
OPTIONAL BASKET SPEED CONTROL
Match the raking action to the crop and field conditions without adjusting speed using the optional basket speed control.
Specs
| DIMENSIONS AND WEIGHTS | |
| Raking width minimum | 18 ft |
| Raking width maximum | 23 ft |
| Windrow width minimum | 36 in |
| Windrow width maximum | 72 in |
| Transport Width | 8.4 ft |
| Transport Length | 21.8 ft |
| Transport Height | 5.9 ft |
| Total Weight | 3220 lbs |
| Tongue Weight | 1400 lbs |
| Transport tire size | ST205/75D15 |
| Drive | Hydraulic |
| RAKING COMPONENTS | |
| Tines per basket | 120 |
| Bars per basket | 6 |
| Basket length | 9.5 ft |
| TRACTOR REQUIREMENTS | |
| PTO horsepower minimum | 35 hp |
| Hydraulic Type | 2 double-acting |
| Hydraulic Pressure | 1800 psi |
| Hydraulic flow rate | 8 gpm |
| FEATURES | |
| Highway Lights | Optional |
| Center splitter | Optional powered |
