Scag SPZ-52H-22FX

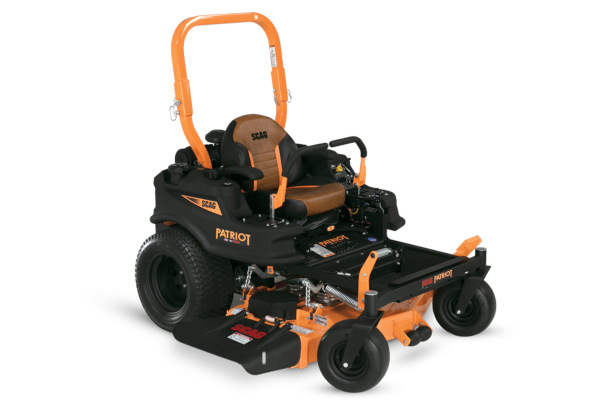

Scag SPZ-52H-22FX for sale at King Ranch Ag & Turf

Double tap to zoom

Scag SPZ-52H-22FX for sale at King Ranch Ag & Turf

Patriot SPZ-52H-22FX

52" Hero Cutter Deck, 22 HP Kawasaki®FX691



Features

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.

Command perfection

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Tubular-steel main frame delivers unmatched strength and longevity.

Hydro-Gear ZT-3100 / ZT-3400 Transaxles

SPEEDS UP TO 10 MPH (SPZ61) / 8.5 MPH (SPZ52)

The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

Low-Maintenance Mower Design

MORE UPTIME

Fewer grease points increase operator convenience and ease-of-ownership.

Suspension Seat

RIDE IN COMFORT

The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.

Iso-Mounted Footplate

CRANK UP THE COMFORT

Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.

Foot-Pedal Parking Brake

STAY IN CONTROL

Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.

Powerful and Efficient Engine Options

RELIABLE POWER, UP TO 26 HP

Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.

Specs

Model Description
SPZ-52H-22FX 52" Hero Cutter Deck, 22 HP Kawasaki®FX691
Product Dimensions
Length 73"
Width (chute down) 64.5"
Width (chute in transport position) 53"
Height (ROPS folded) 46.5"
Height (ROPS up) 61"
Weight 907-911 lb
GENERAL
Total Fuel Capacity 6.5 gallons
Drive Tires 22" x 10.5"-12" (52")
24" x 12"-12" (61")
Caster Tires 13" x 6.5"-6"
Seat Torsion-spring suspension seat
DRIVE SYSTEM
Drive System Type Hydro-Gear ZT3100 Transaxle (52")
Hydro-Gear ZT3400 Transaxle (61")
Pumps ZT3100 Internal Pump: 10 cc (52")
ZT3400 Internal Pump: 12 cc (61")
Motors Internal Motor: 16 cc
Forward Ground Speed 8.5 mph (52")
10 mph (61")
Reverse Ground Speed 5 mph
Parking Brake Foot-operated pedal
DECK
Cutting Widths 52"
Type Hero Cutter Deck
Cutting Height 1.5" to 5" in .25" increments
Deck Lift Foot-operated pedal
Construction Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
Spindles Aluminum housing with sealed ball bearings.
Blade Engagement Ogura GT2 (108 ft lb)
Adjustable air-gap for extended life.

Accessories and Attachments

2-BAG SPINDLE DRIVEN GRASS CATCHER
WHY SPEND HOURS MOWING, RAKING AND MOVING DEBRIS WHEN YOU CAN DO IT ALL IN ONE EASY STEP?
The Scag® 2-Bag Spindle Driven Grass Catcher (GC-2B) for the Scag Patriot™ allows you to quickly and conveniently collect grass clippings and leaves, delivering a picture-perfect, groomed lawn on all Scag Patriot mowers.

With a 7-bushel capacity and a 6″ discharge tube, this is a serious debris-catching system. Contact your Scag Dealer today to get your hands on this time- and labor-saving tool.

2-BAG GRASS CATCHER
COMMERCIAL-GRADE FABRIC BAGS
The Scag® 2-Bag Grass Catcher allows you to quickly and conveniently collect grass clippings and leaves, delivering a picture-perfect, groomed lawn on all Scag Liberty® Z, Freedom Z® and Patriot™ mowers.

With a 7-bushel capacity and an 8″ discharge tube, this is a serious debris-catching system. Contact your Scag Dealer today to get your hands on this time- and labor-saving tool.

Fabric Bag Grass Catcher

HURRICANE MULCH SYSTEM
TAKE MULCHING TO A NEW LEVEL
The Hurricane Mulch System offers the same benefits of the Hurricane Plus™ Mulch System. Available on the following machines:

All Patriot™ decks.
All Freedom Z® decks.
All Liberty® Z decks.
36″ V-Ride™ II deck.
36″ SWZ Hydro-Drive deck.
All SWZT Hydro-Drive decks.

Mulch Plate

TIGER STRIPING AND LAWN PATTERN SYSTEMS
TAKE YOUR LAWN TO THE NEXT LEVEL
The patented Scag® Tiger Striper Lawn Striping System is the ultimate way to enhance the striping ability of your Scag. This lawn striper has unique features that allow you to turn the striping on and off, and remove the entire roller system without tools by pulling two “quick pins.” It is spring-loaded so it applies downward pressure onto the grass. This further enhances the stripe and allows the roller to contour to uneven terrain better than standard fixed rollers, even at high mowing and transport speeds.

Learn How Lawn Striping Works and How Lawn Patterns Are Made!

The entire lawn-striping system mounts behind the rear drive tires. The advantage to mounting the roller at the rear is that it is the last thing to contact the grass. The tires and cutter deck pass over the grass and as a final step, the roller intensifies and evens out the stripe.

*Tiger Striper shown is for Turf Tiger™ II, Cheetah II™ and Tiger Cat® II. Widths of the roller assembly and number of rollers will vary with mower model.

Light Kit

Trailer Hitch

Chrome Wheel Covers

Flat-Free Caster Tire

Blade Buddy
