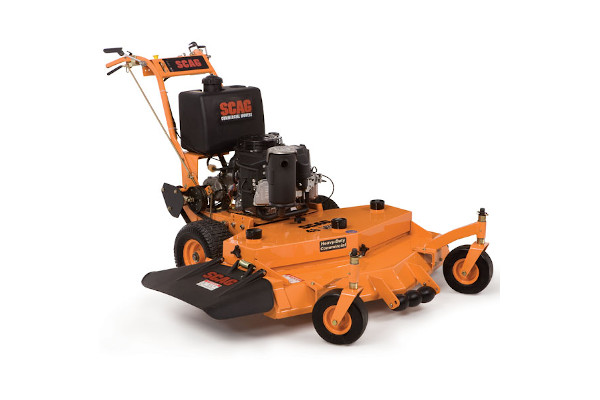

SW Belt-Drive SW36A-14FS
36" Advantage Cutter Deck, 14hp Kawasaki 481FS
Features
The envy of the neighborhood
32", 36", 48" OR 52" CUTTING WIDTH
The envy of the industry, Velocity Plus™ decks (48″, 52″ and 61″ widths) deliver an amazing quality-of-cut and a wide, even discharge. Advantage Cutter Deck options (32″ and 36″) are also available.
Ogura PTO Clutch Brake
STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE
Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
Heavy-Duty Construction
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
Full commercial-grade construction ensures years of productive use.
5-Speed Peerless Transmission
SPEEDS UP TO 6 MPH
Five-speed Peerless transmission features nine-spline coupler shafts for durability and a wide selection of forward ground speeds.
Twin Drive Belts
RELIABLE DRIVE POWER
Twin power belts provide double friction to pulley surfaces and reduce slipping in wet conditions.
Ease of Maintenance
MORE UPTIME
Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SW simple, so you can be in the shop less and on the job more.
Proven "Pistol" Grips
EZ-GRIP DESIGN
Spring-assisted EZ-Grip design reduces hand force required to operate drive controls for maximum operator comfort and simple machine operation.
Adjustable Handlebars
3 POSITIONS TO ACCOMMODATE ALL OPERATORS
Handlebars adjust to three (3) different positions to enhance operator comfort.
Powerful and Efficient Engine Options
RELIABLE POWER, UP TO 15 HP
Proven and dependable 14 hp or 15 hp Kawasaki® FS V-twin engine delivers efficient power.
Specs
| Model | Description |
| SW36A-14FS | 36" Advantage Cutter Deck, 14 HP Kawasaki® 481FS |
| Product Dimensions | |
| Length | 72" |
| Width (chute down) | 47" |
| Width (chute in transport position) | 37" |
| Weight | 470 lb |
| GENERAL | |
| Total Fuel Capacity | 5.5 gallons |
| Drive Tires | 13" x 5"-6" (32") 13" x 6.5"-6" (36", 48" and 52") |
| Caster Tires | 9" x 3.5" |
| Seat | n/a |
| DRIVE SYSTEM | |
| Drive System Type | Belt Drive with 5-Speed Peerless Transmission |
| Pumps | n/a |
| Motors | n/a |
| Forward Ground Speed | Up to 6 mph |
| Reverse Ground Speed | 2 mph |
| Parking Brake | Hand lever |
| DECK | |
| Cutting Widths | 32", 36", 48" and 52" |
| Type | Standard (32") Advantage (36") Velocity Plus™ (48" and 52") |
| Cutting Height | 1.75" to 4.5" in .25" increments |
| Deck Lift | Adjustable via spacers |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles. 32" model features dual-plate. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Five-speed Peerless transmission |
Accessories and Attachments
Fabric Bag Grass Catcher
HURRICANE PLUS™ MULCH SYSTEM
TAKE MULCHING TO A NEW LEVEL
The Hurricane Plus™ features a patented design that takes mulching to a new level. With “Eye of the Hurricane” mulching plates, bolt-in baffles, special Eliminator™ mulching blades and a side-discharge block-off plate, the Hurricane Plus system cuts and recuts clippings into a fine mulch before dispersing them into the lawn.
The “Eye of the Hurricane” mulch plates that keep clippings in the path of the Eliminator blades, and this design ensures clippings are finely shredded and forcefully scattered down toward the soil, returning vital nutrients to the turf. Not only does this save you time and keep the lawn healthy, but it also benefits the environment by reducing landfill waste.
Each Hurricane kit includes a set of serrated “Eliminator” mulching blades with a high lift, “double-cut” edge for quick, thorough shredding of grass clippings and debris. Vital nutrients are put back into the soil.
The Scag® Hurricane Plus Mulch System fits all Velocity Plus™ Cutter Decks.
Mulch Plate
Blade Buddy
