Scag SW32-14FS

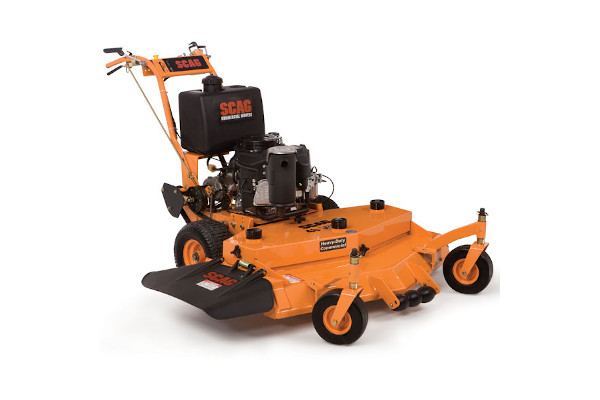

Scag SW32-14FS for sale at King Ranch Ag & Turf

Double tap to zoom

Scag SW32-14FS for sale at King Ranch Ag & Turf

SW Belt-Drive SW32-14FS

32" Cutter Deck, 14hp Kawasaki 481FS



Features

The envy of the neighborhood

32", 36", 48" OR 52" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks (48″, 52″ and 61″ widths) deliver an amazing quality-of-cut and a wide, even discharge. Advantage Cutter Deck options (32″ and 36″) are also available.

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.

Heavy-Duty Construction

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Full commercial-grade construction ensures years of productive use.

5-Speed Peerless Transmission

SPEEDS UP TO 6 MPH

Five-speed Peerless transmission features nine-spline coupler shafts for durability and a wide selection of forward ground speeds.

Twin Drive Belts

RELIABLE DRIVE POWER

Twin power belts provide double friction to pulley surfaces and reduce slipping in wet conditions.

Ease of Maintenance

MORE UPTIME

Easy-access mower design, an unrestricted engine area and easy-to-reach grease Zerks make servicing the SW simple, so you can be in the shop less and on the job more.

Proven "Pistol" Grips

EZ-GRIP DESIGN

Spring-assisted EZ-Grip design reduces hand force required to operate drive controls for maximum operator comfort and simple machine operation.

Adjustable Handlebars

3 POSITIONS TO ACCOMMODATE ALL OPERATORS

Handlebars adjust to three (3) different positions to enhance operator comfort.

Powerful and Efficient Engine Options

RELIABLE POWER, UP TO 15 HP

Proven and dependable 14 hp or 15 hp Kawasaki® FS V-twin engine delivers efficient power.

Specs

Model Description
SW32-14FS 32" Cutter Deck, 14 HP Kawasaki® 481FS
Product Dimensions
Length 70"
Width (chute down) 43"
Width (chute in transport position) 33"
Weight 450 lb
GENERAL
Total Fuel Capacity 5.5 gallons
Drive Tires 13" x 5"-6" (32")
13" x 6.5"-6" (36", 48" and 52")
Caster Tires 9" x 3.5"
Seat n/a
DRIVE SYSTEM
Drive System Type Belt Drive with 5-Speed Peerless Transmission
Pumps n/a
Motors n/a
Forward Ground Speed Up to 6 mph
Reverse Ground Speed 2 mph
Parking Brake Hand lever
DECK
Cutting Widths 32", 36", 48" and 52"
Type Standard (32")
Advantage (36")
Velocity Plus™ (48" and 52")
Cutting Height 1.75" to 4.5" in .25" increments
Deck Lift Adjustable via spacers
Construction Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
32" model features dual-plate.
Spindles Cast-iron housing with tapered roller bearings.
Blade Engagement Five-speed Peerless transmission

Accessories and Attachments

Fabric Bag Grass Catcher

HURRICANE PLUS™ MULCH SYSTEM
TAKE MULCHING TO A NEW LEVEL
The Hurricane Plus™ features a patented design that takes mulching to a new level. With “Eye of the Hurricane” mulching plates, bolt-in baffles, special Eliminator™ mulching blades and a side-discharge block-off plate, the Hurricane Plus system cuts and recuts clippings into a fine mulch before dispersing them into the lawn.

The “Eye of the Hurricane” mulch plates that keep clippings in the path of the Eliminator blades, and this design ensures clippings are finely shredded and forcefully scattered down toward the soil, returning vital nutrients to the turf. Not only does this save you time and keep the lawn healthy, but it also benefits the environment by reducing landfill waste.

Each Hurricane kit includes a set of serrated “Eliminator” mulching blades with a high lift, “double-cut” edge for quick, thorough shredding of grass clippings and debris. Vital nutrients are put back into the soil.

The Scag® Hurricane Plus Mulch System fits all Velocity Plus™ Cutter Decks.

Mulch Plate

Blade Buddy
