Scag TL20W-29BV

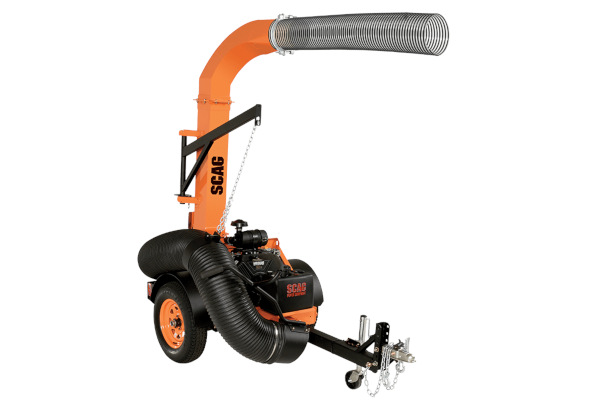

Scag TL20W-29BV for sale at King Ranch Ag & Turf

Double tap to zoom

Scag TL20W-29BV for sale at King Ranch Ag & Turf

Tow Behind Truck Loaders TL20W-29BV

Scag® Tow-Behind truck loaders are built for major debris handling jobs. And it provides incredible performance, quality& value to you.



Features

4-Blade Impeller

FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER

Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.

Smart Construction and Convenient Serviceability

EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE

1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.

Locking Boom Arm and Intake Nozzle

SAFE AND CONVENIENT TRANSPORT

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.

Ambidextrous Nozzle Handle

EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

12" Steel Intake Nozzle

TAKE IT ALL IN

Large, replaceable intake nozzle is beveled to make debris pickup easy.

Adjustable Tongue and Hitch

FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit to your truck. Standard 2″ ball coupler will also accept a 2 5/16″ ball or pintle hitch.

Built-In Tool Holder

KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH

Built-in, 3-hole tool holder with rubber rings protects handles from damage.

Large-Capacity Fuel Tank With Built-In Gauge

HOURS AND HOURS OF RUN TIME

High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

Powerful Engine Options

HUGE POWER, UP TO 29 HP

Choose from a 26.5 hp Kohler® Command PRO® EFI or a 29 hp Vanguard® BIG BLOCK™ gasoline engine.

Specs

Model TL20W-29BV
Engine Briggs & Stratton® Vanguard™ BIG BLOCK™, V-Twin, electric start
HP* 29
Fuel Capacity / Tank 5.5 gallons - plastic tank with built-in fuel gauge
CFM Output 4,680
Frame Construction All-steel, welded
Impeller Construction 4-blade, 3/8"-thick blades, all-steel, welded
Impeller Mounting Tapered locking hub
Impeller Diameter / Width 20" / 6.5"
Blower Housing Construction Removable back panel for easy impeller and wear plate access
Blower Housing Width 7.5"
Blower Housing Wear Plates Standard: 1/4"-steel, replaceable
Intake Hose Specifications 120" length, 12"-diameter intake hose, 0.045 blue thermoplastic rubber, wire helix with wearstrip
Unit Mounting Hitch: Class III minimum
Discharge Tube Clear thermoplastic, 8" diameter, 60" length
Throttle Control Commercial-grade, all-steel mechanicals, plastic debris cover
Highway Ready** Yes - optional roadside package
Axle Heavy-duty Dexter Torflex® axle (2,000 lb)
Tires 205 / 75 R15 highway tires with steel wheels
Trailer Width 53.5"
Accessories Light Kit, Roadside Kit
Height 110"
Weight 1,060 lb
