Scag TLB25-37CH

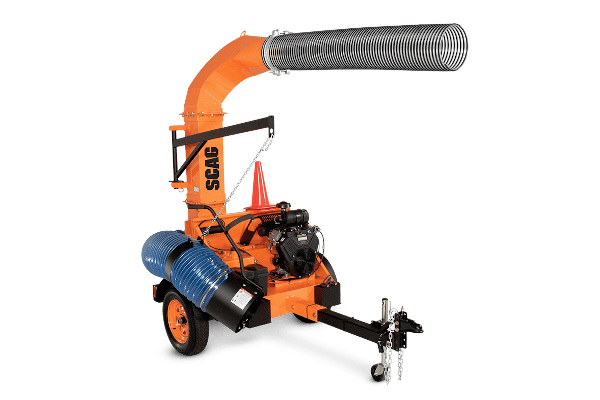

Scag TLB25-37CH for sale at King Ranch Ag & Turf

Double tap to zoom

Scag TLB25-37CH for sale at King Ranch Ag & Turf

Industrial Tow Behind Truck Loaders TLB25-37CH

Scag Giant-Vac Industrial Tow Behind Truck Loaders are built for major debris handling jobs. Municipalities and large landscape companies will appreciate the incredible performance, quality and value these loaders deliver. They feature 25" diameter, all steel, balanced, debris reducing impellers, 16" intake hoses, and ... + Read More



Features

4-Blade Impeller

FABRICATED AND BALANCED, 25-INCH, 4-BLADE IMPELLER

Within the unit’s 10.5″-wide housing is a welded-steel impeller with 1/2″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (35BV = up to 6,781 CFM; 37CH = up to 6,909 CFM; 49KBD = up to 7,318 CFM), debris-reducing design.

Smart Construction and Convenient Serviceability

EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE

1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.

Locking Boom Arm and Intake Nozzle

SAFE AND CONVENIENT TRANSPORT

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation.

Ambidextrous Nozzle Handle

EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

16" Steel Intake Nozzle

TAKE IT ALL IN

HUGE, replaceable intake nozzle makes debris pickup easy.

Adjustable Tongue and Hitch

FIT TO YOUR TRUCK – LONG OR SHORT, HIGH OR LOW

Choose from three different tongue lengths to best fit your specific application. A height-adjustable hitch gives the best fit your truck. A 2 5/16″ ball coupler comes standard on gas-powered units, but will accept a pintle hitch. Diesel-powered unit comes with standard pintle hitch, but will accept a 2 5/16″ ball coupler.

Built-In Tool Holder

KEEP YOUR RAKES, BROOMS AND SHOVELS WITHIN EASY REACH

Built-in, 3-hole tool holder with rubber rings protects handles from damage.

Large-Capacity Fuel Tank With Built-In Gauge

HOURS AND HOURS OF RUN TIME

High-capacity, 8.5-gallon, steel fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

Ultra-Powerful Engine Options

HUGE POWER, UP TO 49 HP

Choose from a 35 hp Vanguard® BIG BLOCK™ or a 37 hp Kohler® Command PRO® EFI gasoline engine, or a 49 hp Kubota® diesel engine.

Specs

Model TLB25-37CH
Engine Kohler® Command PRO®, V-Twin, electric start
HP* 37
Fuel Capacity / Tank 8.5 gallons - plastic tank with built-in fuel gauge
CFM Output 6,909
Frame Construction All-steel, welded
Impeller Construction 4-blade, 1/2"-thick blades, all-steel, welded
Impeller Mounting Straight bore
Impeller Diameter / Width 25" / 9"
Blower Housing Construction Removable back panel for easy impeller and wear plate access
Blower Housing Width 10.5"
Blower Housing Wear Plates Standard: 1/4"-steel, replaceable
Intake Hose Specifications 84" length, 16"-diameter intake hose, 0.045 blue polyurethane rubber, wire helix with wearstrip
Unit Mounting Hitch: at least 10,000 lb rating
Discharge Tube Clear thermoplastic, 12" diameter, 84" length
Throttle Control Commercial-grade, all-steel mechanicals
Highway Ready** Yes - standard roadside package, including wheel chocks and cones
Axle Heavy-duty Dexter Torflex® axle (3,500 lb)
Tires 205 / 75 D15 highway tires with steel wheels
Trailer Width 66.75"
Accessories Light Kit, Brake Kit
Height 121.25"
Weight 1,700 lb
