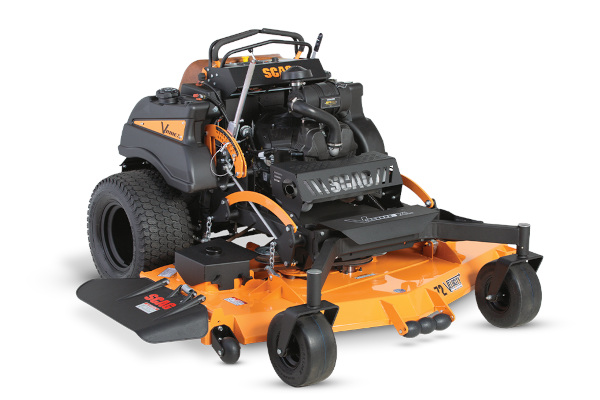

Scag SVRXL-52V-40BV-EFI

Results That Will Make Your Competitors Jealous

52", 61" OR 72" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 52″, 61″ and 72″ widths.

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.

Adjustable Operator Platform

EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE

Spacious operator platform with adjustable suspension delivers a smooth ride and reduces operator fatigue. Extra-large comfort cushion allows for comfortable operation, hour after hour. Adjustable platform suspension further enhances operator comfort.

Cutter-Deck Lift System

CONVENIENT, SPRING-ASSISTED LEVER

Command perfection

DEEP, FABRICATED, AND WELDED CUTTER DECKS

Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.

High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Tubular-steel main frame delivers unmatched strength and longevity.

Hydro-Gear ZT-3100 / ZT-3400 Transaxles

SPEEDS UP TO 10 MPH (SPZ61) / 8.5 MPH (SPZ52)

The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.

Low-Maintenance Mower Design

MORE UPTIME

Fewer grease points increase operator convenience and ease-of-ownership.

Suspension Seat

RIDE IN COMFORT

The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.

Iso-Mounted Footplate

CRANK UP THE COMFORT

Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.

Foot-Pedal Parking Brake

STAY IN CONTROL

Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.

Powerful and Efficient Engine Options

RELIABLE POWER, UP TO 26 HP

Choose from a Briggs Vanguard™, Kawasaki® FX or a Kohler® Command PRO® air-cooled, V-twin engine.

Results That Will Make Your Competitors Jealous

52", 61" OR 72" CUTTING WIDTH

The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 52″, 61″ and 72″ widths.

Ogura PTO Clutch Brake

STRONG, ADJUSTABLE CLUTCH FOR LONG LIFE

Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.

Adjustable Operator Platform

EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE

Spacious operator platform with adjustable suspension delivers a smooth ride and reduces operator fatigue. Extra-large comfort cushion allows for comfortable operation, hour after hour. Adjustable platform suspension further enhances operator comfort.

Cutter-Deck Lift System

CONVENIENT, SPRING-ASSISTED LEVER

Change cutting heights from 2-6″ in ¼” increments. Deck can be lifted from the operating position with the pull of a spring-assisted lever.

High-Strength Steel Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.

Industrial-Grade Hydraulic System

SPEEDS UP TO 11.6 MPH

Heavy-Duty Hydro-Gear pumps (16 cc) and high-torque Hydro-Gear wheel motors (18 ci) deliver dependable power, with speeds up to 11.6 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures.

Ease of Maintenance

MORE UPTIME

Comfort cushion and lower panel are removable to allow quick and easy service access to the hydraulic system. This gives operators unrestricted engine compartment access for easy-to-reach grease Zerks and many more features, making servicing the V-Ride XL simple. Spend less time in the shop and more on the job.

Tiger Eye Advanced Monitoring System

KEEP A REAL-TIME "EYE" ON IMPORTANT SYSTEM FUNCTIONS

The Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator’s seat. (Specific functions vary by mower model and engine.)

Powerful and Efficient Engine Options

HUGE POWER, UP TO 40 HP

Choose from Briggs & Stratton Vanguard®, Kawasaki® or Kohler engines; electronic fuel injection (EFI) is standard on all V-Ride XL models.

Model	Description
SVRXL-52V-40BV-EFI	Briggs & Stratton Vanguard® – electronic fuel injection BLACKOUT EDITION
Product Dimensions
Length	70.5"
Tracking Width	51.5"
Width (chute down)	66.25"
Width (chute in transport position)	53.75"
Height	47.75"
Weight	1,150–1,179 lb
GENERAL
Total Fuel Capacity	12 gallons
Drive Tires	24" x 9.5"-12" (52") 24" x 12"-12" (61" and 72")
Caster Tires	13" x 6.5"-6"
DRIVE SYSTEM
Drive System Type	Dual Pump and Motor
Pumps	Hydro-Gear 16 cc
Motors	Hydro-Gear 18 ci
Forward Ground Speed	Up to 11.6 mph
Reverse Ground Speed	5 mph
Parking Brake	Hand lever
DECK
Cutting Widths	52", 61" and 72"
Type	Velocity Plus™ cutter deck
Cutting Height	2" to 6" in .25" increments
Deck Lift	Hand lever
Construction	Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.
Spindles	Cast-iron housing with tapered roller bearings.
Blade Engagement	Ogura 3.5 (250 ft lb) Adjustable air-gap for extended life.

Dual-Wheel Kit (Coming Soon)
Hurricane Plus™ Mulch System
Mulch Plate
OCDC – Operator-Controlled Discharge Chute (Coming Soon)
Light Kit
Chrome Wheel Covers
Blade Buddy
