Designed to provide maximum shredding of crop material

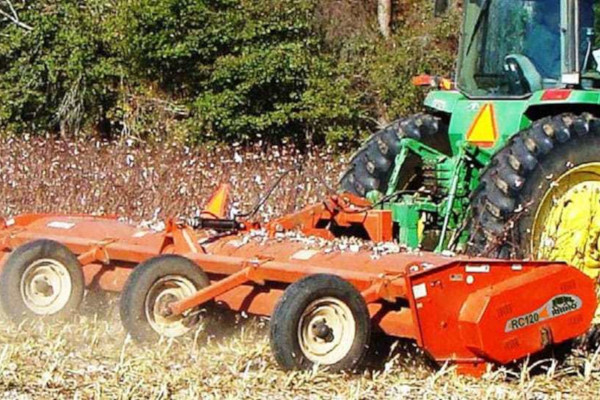

Rhino® RC flail shredders are designed to provide maximum shredding of crop material while leaving the residue evenly distributed across the width of the machine.
RC flail shredders feature a five-year limited gearbox warranty and are available with a three-po... + Read More
Model | RC120 |
Cutting Width | 240 |
Overall Width | 264'' |
Cutting Height | 1"-18" |
Hitch | CAT 2 & 3 QH - Lift * Semi-Mount or Pull-Type * |
Cuttershaft Diameter | 10 3/4'' |
Blades | Hard-Surfaced with Tungsten Carbide |
Horsepower Required - Lift | 130 HP |
Horsepower Required - Semi-Mount | 120 HP |
Horsepower Required - Pull | 120 HP |
Tires | (4) 9.5L-15'' |
Wheel Hubs | 6-Bolt |
Gearbox Rating (1000 RPM) | 207 HP |
Gearbox Oil (85W-140) | Factory Filled |
Knife Tip Speed | 12,620 FPM, Reverse Rotation |
Number of Blades | 216 |
Driveline Size | Cat 5 or 6 |
Driveline Protection | 5 x 5 V, Banded Belt |
Rotor Bearing Protection | Anti-Wrap Seal Protector |
Cuttershaft Bearings | 2 9/16'' |
Hood Thickness | 3/16, With 3/16 Internal Wear Liners |
End Plate Thickness | 1/4'' |
Safety Deflector - Lights | Std |
Weight (Approx.) | 4,950 lbs. |
* Tractor Quick Hitch must be used for Lift-Type and Semi-Mount units
