Dump Trailers

Dump Trailers




DT12SERIESDT12 SERIES
The Light duty 12 Series Dump is equipped with 6000# Axles and Electric brakes on both for a 12000# GVWR. 24″ Sides is standard. Dual Action doors for loading and spreading.

12,000# GVWR

SIZE   MODEL
12′ X 6’10” (E-BRAKE)   DT12610-12E24
14′ X 6’10” (E-BRAKE)   DT14610-12E24



DT14SERIESDT14 SERIES
The 14 series Dump trailer is equipped with 7000# Axles and Electric brakes on both for a GVWR of 14000#. Fitted either tongue-pull or gooseneck. HD Scissor hoist 30″ sides standard.

DT14 SERIES (14,000# GVWR)

SIZE   MODEL
14′ X 6’10” (E-BRAKE)   DT14610-14E30
14′ X 6’10” (E-BRAKE)   GNDT14610-14E30
16′ X 6’10” (E-BRAKE)   DT16610-14E30
16′ X 6’10” (E-BRAKE)   GNDT16610-14E30



GNDT16 1 980x653DT16 SERIES
The 16 series Dump trailer is equipped with 8000# Axles and Electric brakes on both for a GVWR of 16000#. Fitted either tongue-pull or gooseneck. HD Scissor hoist 30″ sides standard.

DT16 SERIES (16,000# GVWR)

SIZE   MODEL
16′ X 6’10” (E-BRAKE)   GNDT16610-16E30
16′ X 6’10” (E-BRAKE)   DT16610-16E30

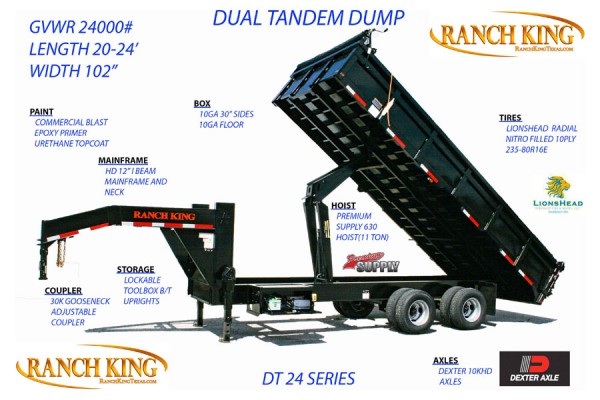

DUALDUMPDUAL TANDEM DUMP
Dual Tandem Dump is equipped with HD 10K Dexter Axles with Electric brakes for a 24000# GVWR. (8) 235-80r16E Radial Lionshead Tires. HD Scissor hoist, Dual action rear doors, Tarp, Front and side toolboxes. I-Beam mainframe w12x22#, I-beam neck w12x16#.

GNDT DUAL TANDEM (24000# GVWR)

SIZE MODEL
6’10″X18′ GNDT18610-24EE (E-BRAKE)
6’10″X20′ GNDT20610-24EE (E-BRAKE)
6’10″X24′ (E-BRAKE) GNDT24610-24EE (E-BRAKE)

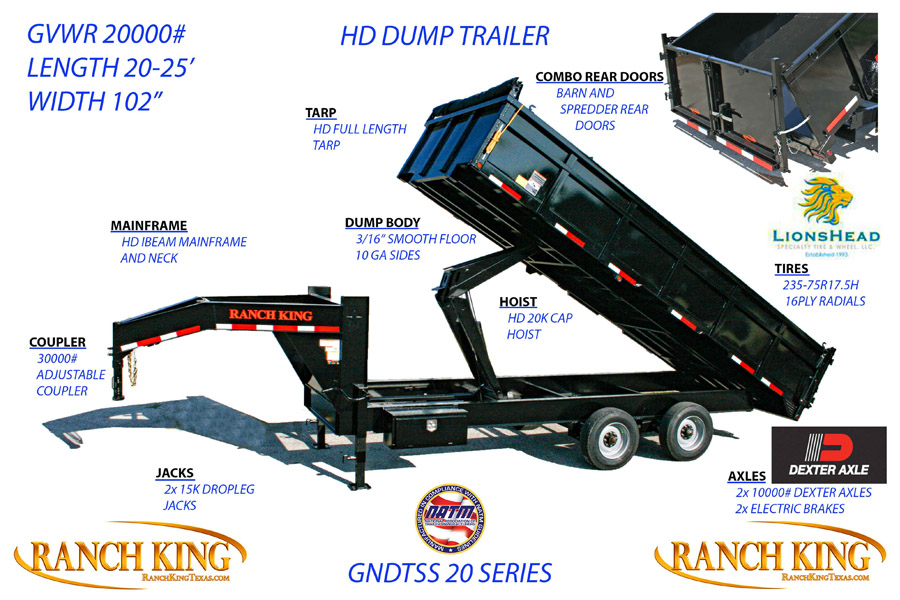

GNDUMPSS 1HD DUMP TRAILER
Super Single Dump is equipped with 10000# Dexter Axles with Electric Brakes for a 20000# GVWR. (4)235-85r17.5J rated 6000cap tires for 24k total cap on the tires. HD 10ga sides and floor. HD Scissor hoist with 20k Capacity. Dual action doors, Front toolbox and side underbody box.

GNDTSS (20000# GVWR)

SIZE MODEL
6’10″X18′ GNDT18610-20EE (E-BRAKE)
6’10″X20′ GNDT20610-20EE (E-BRAKE)
6’10″X24′ GNDT24610-20EE (E-BRAKE)
