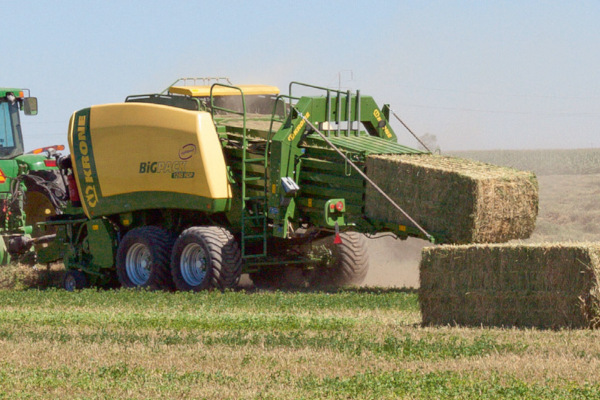

BiG Pack BiG Pack 1290 HighSpeed
BiG Pack 1290 (XC) HighSpeed
These solid 1.20 m wide and 90 cm high bales are popular with farmers the world over. With its massive bale dimensions, this machine is mainly in demand for straw and hay, but it also handles silage successfully in some countries.
Features
The BiG Pack 1290 HDP (XC) breaks new ground among large square balers. The high density of the bales saves space and the uniform, sharp-edged bales are easy to stack. More weight and less volume – that has a positive impact on handling, transport and storage costs.
Clever twist: The combination of the huge bevel gearbox and the flywheel tipping the scales at more than 600 kg (1,322 lbs) can cope with more than 940 kW/1280 hp and efficiently absorbs peak loads on the plunger during baling.
Extended bale chamber: The extended chamber bales 500 kg bales of 2.35 m in length – as demonstrated by BiG Pack 1290 HDP many times over in straw. The strengthened, funnel-shaped bale chamber, which has been extended by 80 cm, produces up to 25% denser bales.
The pressure’s on: To cope with the high baling pressure, KRONE has kitted out its balers with around 2.5 tons more steel. The large, reinforced yoke is designed to cope with exceptionally high loads. Six hydraulic rams generate the force on the side walls, delivering rock-solid big bales.
Specs
| The BiG Pack standard programme | BiG Pack 1290 HighSpeed |
| Chamber width x height cm | 120 x 90 (3'11" x 2'11") |
| Bale length m | 1.0 - 2.7 (3'3" - 8'10") |
| Tractor power Min. kW/hp | 90 / 122 |
| Pick-up work width DIN m | 2.35 (7'8.5") |
| Length in transport position m | 7.95 (26'1") |
| Length in working position Approx. m | 9.18 (30'1") |
| Height m | 3.14 (10'4") |
| Width mm | 2.99 (9'10") |
| Min weight** approx. t | 8.9 |
| Tyres for the 40 km/h single axle | 710 / 45 - 22.5 171 A8 |
| Tyres for 60 km/h tandem axles | 500 / 50 - 17 14 PR 550 / 45 - 22.5 16 PR 560 / 45 R 22.5 146 D 620 / 40 R 22.5 148 D – |
| Brakes | Air/hydr |
| Twine storage** No. of rolls | 32 |
| PreChop | - |
| Single knotter | - |
| Double knotter | 6 series |
| MultiBale | - |
| Max. no. of blades | - |
| Min. cutting length mm | - |
| Plunger strokes no. of strokes/minute | 45 |
| BaleCollect | Optional |
All specifications, weights and dimensions do not necessarily comply with standard specifications and are therefore not binding.
Specifications are subject to change without notice.
* For standard pick-up and depending on tyres
** Varies according to machine specification
*** Including the optional twine boxes (+ 12 balls)
