Multifunction Self-Propelled Machine
Energreen ILF KOMMUNAL is an extremely versatile machine, multipurpose and multifunction at full power able to perform any work done by a common tractor with telescopic boom more quickly, powerfully and productively . This machine is appropriate to work all year with different at... + Read More
ILF KOMMUNAL STRENGTHS
MULTIFUNCTION
– Front and rear attachment of several attachments for road or forest care, maintenance of green areas, winter roads, earthmoving or construction works
– Front mounting of sturdy telescopic booms up to 23 feet, with the terminal application of various professional attachments
– Possibility of lateral installation of a very useful mowing disc for guardrails
MANEUVERABILITY
– All-wheel drive: 2 steering wheels, 4 steering and crab wheels.
– Bi-directional work
SAFETY AND COMFORT
– FOPS-ROPS approved cabin
– High visibility panoramic glass
– Excellent working ergonomics
– Stability check
+PRODUCTIVITY
– Quick attachments connection system
– Multiple attachments applicable simultaneously
– Maximum maneuverability on all terrains
– Hydraulic power and operating technology
QUALITY
– Reinforced frame in special STRENX® steel
– Certified components
– Powerful and proven Tier 4F engine
– HEAVY DUTY hydrostatic transmissions
EXTREME VISIBILITY
Maximum 360° visibility with large windows for the full monitoring of the working environment
MAXIMUM ALL-OVER VISIBILITY
The first surprising feature inside the cabin of this self-propelled hydrostatic machine are the wide glasses, that guaranties maximum visibility at 360 degrees for a full control on the working area. The adjustable steering wheel, the comfortable seat and the ergonomic and intuitive devices system establish a strong feeling between the operator and the machine with its fluidity in all drives in order to make easier every day of hard work.
3 STYLES IN THE CABIN
The spacious FOPS-ROPS approved cabin is available in three different versions, to make your work easier and more comfortable.
MAXIMUM SAFETY AND COMFORT
The cabin is approved according to FOPS-ROPS, ensuring protection against overturning and falling objects. It is equipped with a sealing system through soft seals on the fixed and mobile glazing, mounted on elastic brackets in the support points, resulting completely isolated and efficiently air-conditioned and making this multifunction machine suitable for work in dusty and noisy environments for many hours a day in full comfort, as it is in the Energreen philosophy.

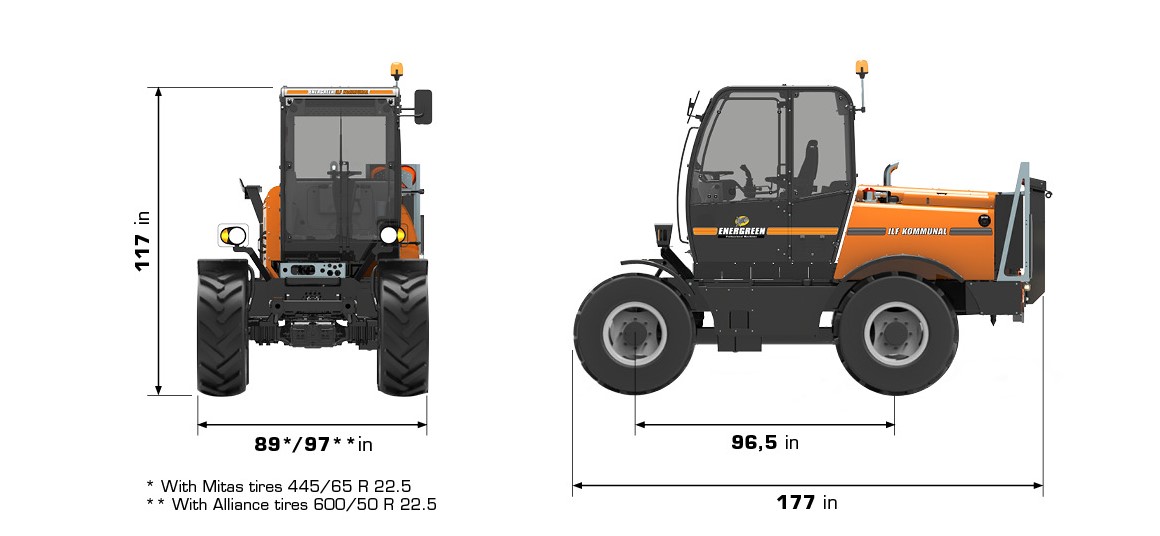

Technical Data ILF KOMMUNAL | |
Cabin homologation | ROPS - FOPS (1° Level) |
Steering wheel | Adjustable |
Joystick | Electronic |
Seat | Air suspension, adjustable |
Drive | 4x4 permanent |
Speed variation | 0 - 24,85 mph (continuous) |
Manual gearbox | 2 gears |
Machine weight, without / with equipment | 14 374,14 / 22 046,23 lbs |
Motor Technical Data ILF KOMMUNAL | |
Brand | Deutz TCD 3.6 |
Model | 4-Cylinder Diesel |
Power | 135 HP (100 kW) |
Injection | Commonrail 4 valves for cylinder |
Exhaust emissions | EPA TIER 4f |
Alternator | 120 A |
Fuel tank | 190,20 gal |
Fan | CLEANFIX (Optional) Reversible self-cleaning |
