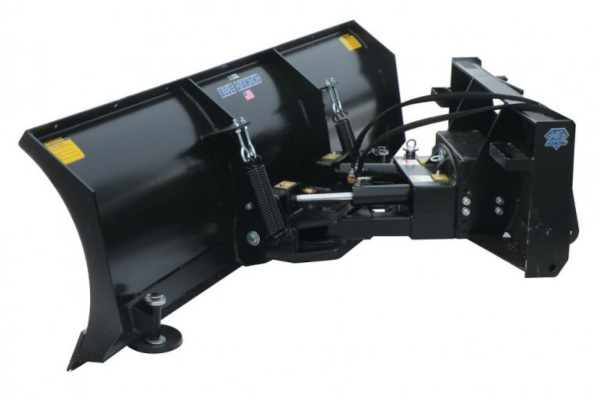

Tractor Attachments Heavy Duty Series 2 Multi-Purpose Blade
The Blue Diamond® Heavy Duty Series 2 Multi-Purpose blade is designed for commercial tractors. At 28” tall, this blade is purpose-built for large applications and has an optional 8” height extension that can be bolted on for even more capacity. The curved back keeps the material rolling for maximum efficiency. Adjustab... + Read More
Features
- Available in 84”, 96”, 108”, and 120” widths
- 28” blade height
- Optional bolt-on 8” height extension
- Full-trip mouldboard
- Steel cutting edge
- Hydraulic angle
Specs
| PART NUMBER | STRAIGHT WIDTH | ANGLED WIDTH | ANGLE | HEIGHT | WEIGHT |
| 123470 | 84" | 72 1/2" | 30° | 28" | 901 lbs |
| 123475 | 96" | 82 7/8" | 30° | 28" | 946 lbs |
| 123480 | 108" | 93 3/8" | 30° | 28" | 986 lbs |
| 123485 | 120" | 104 1/8" | 30° | 28" | 1,016 lbs |
