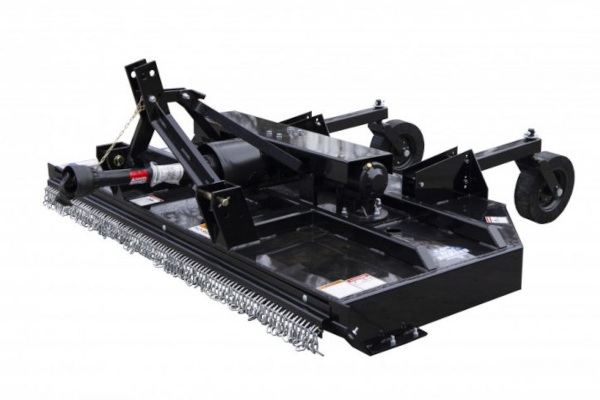

The Blue Diamond® Heavy Duty Dual Spindle Cutters are designed for heavy duty applications such as weeds, grass, and brush up to 3” diameter. These cutters are designed to work with a minimum 42 hp or 52 hp tractors and are available in 8’ and 10’ widths. The cutter uses a dual spindle with two free-swinging blades eac... + Read More
ART NUMBER | 403125 | 403127 |
MODEL | 8' | 10' |
MIN. HORSEPOWER | 42 | 52 |
CUTTING WIDTH | 96" | 120" |
TRANSPORT WIDTH | 98" | 122" |
HITCH | Category 1 & 2 | Category 1 & 2 |
CUTTING HEIGHT | 2"-10" | 2"-10" |
MAX CUTTING CAPACITY | 3" | 3" |
DECK THICKNESS | 10 GA | 10 GA |
SIDE BANDS | 8" | 8" |
PTO DRIVE SHAFT | Series 5 w/Slip Clutch | Series 5 w/Slip Clutch |
CENTER DRIVE SHAFT | Shock Coupler Protected | Shock Coupler Protected |
STUMP JUMPER | 5/8" Plate | 5/8" Plate |
CENTER GEARBOX | 125 hp | 125 hp |
OUTBOARD GEARBOXES | 100 hp | 100 hp |
WHEEL | 1250 | 1480 |
SKID SHOES | Replaceable | Replaceable |
GEARBOX WARRANTY | 5 yr limited | 5 yr limited |
CHAIN GUARDS | Standard | Standard |
