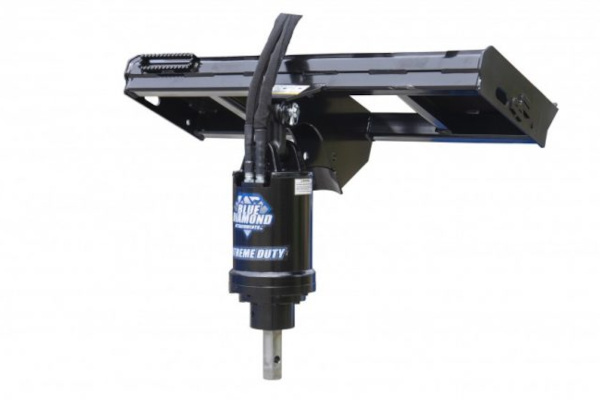

Blue Diamond Attachments Auger - Tractor - Extreme Duty Series 2

Blue Diamond Attachments Auger - Tractor - Extreme Duty Series 2 for sale at King Ranch Ag & Turf

Double tap to zoom

Blue Diamond Attachments Auger - Tractor - Extreme Duty Series 2 for sale at King Ranch Ag & Turf

Tractor Attachments Auger - Tractor - Extreme Duty Series 2

Blue Diamond® Extreme Duty Series 2 Auger Drive offers the ultimate in performance, quality, and cost effectiveness. Designed with high-grade materials and innovation, this design allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. These drives are perfect for drilling and auge... + Read More



Features

  • Compact high torque manufactured gearbox
  • 2-piece shaft design ensures maximum side load ratings
  • 2” hex shaft comes standard but also available with 2 9/16” round
  • 5-year gear box warranty, 3-year motor warranty and lifetime warranty on shaft pull-out

Specs

PART NUMBER MODEL TORQUE FT-LBS @ 3,000 PSI MAX TORQUE FT-LBS @ 3,500 PSI MAX PRESSURE - DO NOT EXCEED MAX FLOW - DO NOT EXCEED BEST FLOW PEAK EFFICIENCY (GPM) WEIGHT
305705 EX1 1,467 1,712 3,500 PSI @ 16 GPM 30 GPM @ 1,800 PSI 6-16 8-11 101 lbs
305708 EX2 2,254 2,630 3,500 PSI @ 16 GPM 30 GPM @ 1,800 PSI 10-26 12-16 123 lbs
305712 EX3 2,829 3,300 3,500 PSI @ 16 GPM 30 GPM @ 1,800 PSI 10-30 17-20 123 lbs
305715 EX4 3,275 3,821 3,500 PSI @ 16 GPM 30 GPM @ 1,800 PSI 1030 19-23 125 lbs
305720 EX4HF 3,583 4,180 3,500 PSI @ 27 GPM 42 GPM @ 2,250 PSI 10-36 21-26 180 lbs
305725 EX5HF 3,903 4,553 3,500 PSI @ 27 GPM — 10-36 — 290 lbs
305728 EX6HF 4,909 5,728 3,500 PSI @ 27 GPM — 12-36 — 290 lbs
305730 EX7HF 6,162 7,189 3,500 PSI @ 27 GPM — 14-36 — 290 lbs

Available to fit machines up to 60,000 lbs. For more specs, see the spec sheet attached above.
