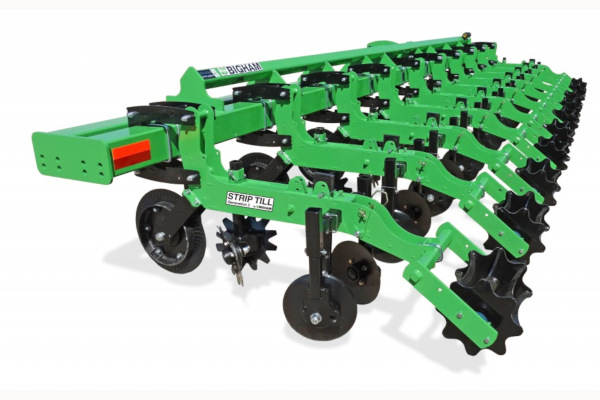

Tillage Strip Till – Generation 3
Tillage, bed preparation, and fertilizer—in a single pass.
Prepare a tilled zone and leave valuable residue around it for protection of your tender young crop.
Disturb less soil and residue for conservation of water, soil, and organic material, and eliminate wasteful multiple tillage and chemical application passes... + Read More
Features
Gang Operating Features:
- Welded “tab and slot” frame for durability and reduced weight.
- Optimized tool spacing.
- Extended frame promotes maximum residue and soil flow between tillage components.
- Only three grease zerks per row. Greasing interval is once each operating season.
Parallel Linkage:
- 3/4” pivot bolts.
- Polymer wear bushings keep the linkage assembly tight and never need greasing.
- U-Bolt Rear Mount clamps give more vertical travel.
- Wrap-around clamps keep gangs straight and prevent “walking” in side-draft conditions, and moves the gang forward, making the unit easier to lift.
Auto-Reset Linkage
- Trips the gang in two dimensions when an obstruction is encountered.
- Spring allows gang to rotate. Coulter amplifies action.
- Gang resets automatically.
Front Coulter:
- 1-1/8” Arbor Bolt
- Two heavy 208 series sealed ball bearings with triple-lip seals in each coulter hub.
- Choice of rigid or adjustable depth coulter with easy adjusting handle.
- Optional scrapers
Super Duty Row Cleaner:
- Heavy duty hubs with two disc bedder bearings stand up to tough soil conditions.
- New notched discs clear residue in front of the tillage shank.
- Twisted blades on right- and left-hand discs boost aggressive residue clearing.
Tillage Shank Options:
- Wide variety of shanks to match your tillage and application requirements, all with fertilizer tubes standard.
- Mole knives are available with standard wear cap items and optional heavy duty caps and tube protector shins.
- Heavy optional shanks to meet deeper tillage and application requirements.
Rear Tillage Discs:
- Choose the disc option that matches your Strip Till preference. Penetrate the tillage zone, close the “shank slot,” create a berm, or use disc bedders to form a bed.
- Tillage discs are mounted on twisted flat shanks with a positive hexagon angle pitch
- adjustment feature.
- Each blade is adjustable vertically and laterally on the tool bar.
Rear Basket:
- Basket weldment features 1-1/2” shaft and flange bearings with triple lip seals.
- Seals moisture, breaks up clods and prepares the seedbed.
